Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

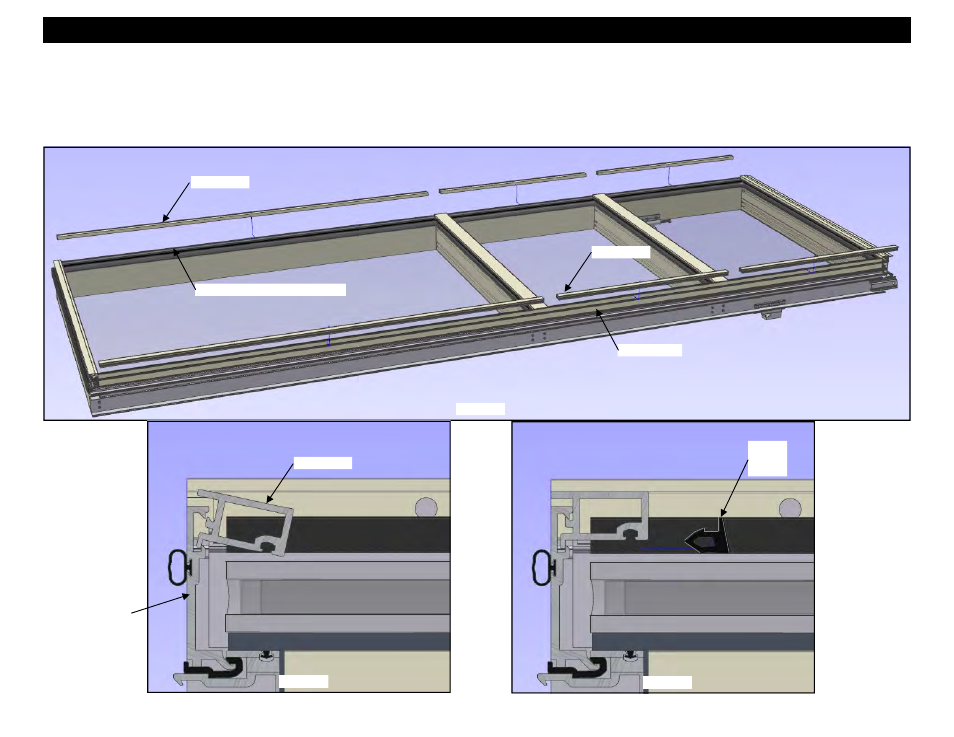

26. Insert 17A3 cover into 17A2 captured glazing adapter at each unit jamb and rotate into place as shown in Figures 89 and 90.
27. Cut the WC22 gaskets approximately 2” longer than the D.L.O. dimension.
28. Drive in WC22 wedge gaskets as shown in Figure 90. The gaskets should be applied starting in the center of the D.L.O., and then working from the ends,

work the gaskets in place to the center of the lite.

Section 6 - Captured Unit Glazing: C. Adapter and Cover Installation

Figure 89

Figure 90

Figure 88

17A3 Cover

17A3 Cover

17A2 Captured

Glazing Adapter

17A2 Fin Bar

17A2 Captured Glazing Adapter

WC22
Wedge
Gasket

17A3 Cover
