Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

6. Ensure the sealant continuity joints between the adapters are properly filled with sealant and tooled smoothly for best aesthetics. Refer to Figures 35, 36,

and 37 on page 16 for detailed views of the weather seals and sealant continuity joints.

7. Allow units to sit undisturbed until the sealant is cured and per the sealant manufacturer’s recommendations.
8. If units are being stored or shipped on their sides, prevent any pressure from being applied to the adapters, or the weather seals will be damaged.

Section 5 - SSG Unit Glazing: D. Weather Seal Application

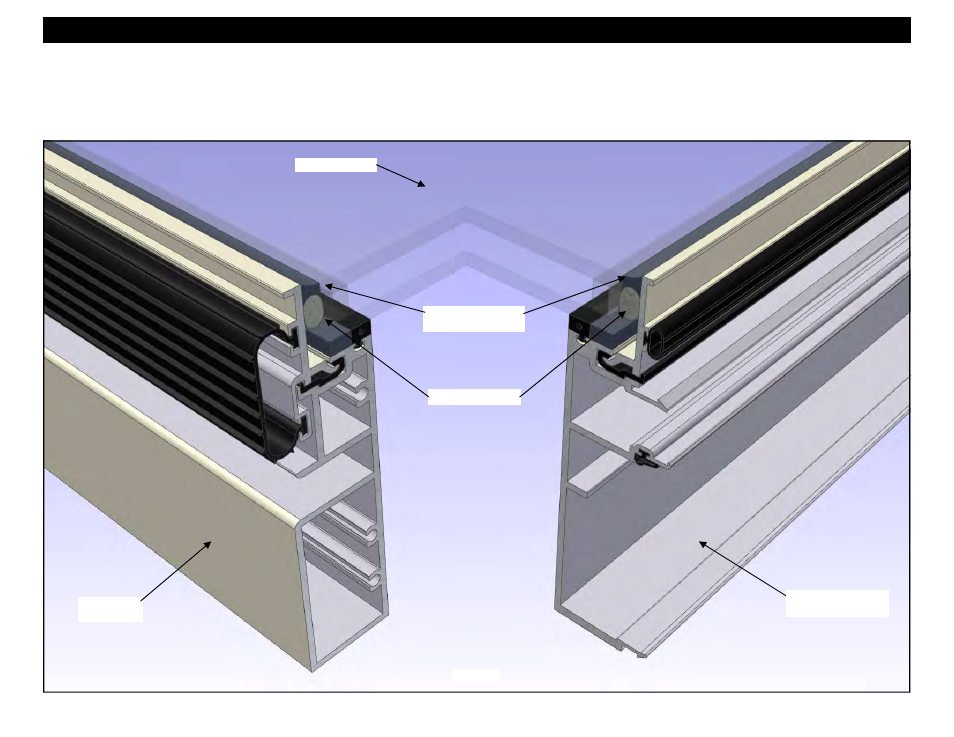

Figure 38

Glazing Infill

Silicone Sealant

Weather Seal

3/8” Backer Rod

Stack Sill

Assembly

Vertical Mullion

Assembly
