Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

Section 6 - Captured Unit Glazing: C. Adapter and Cover Installation

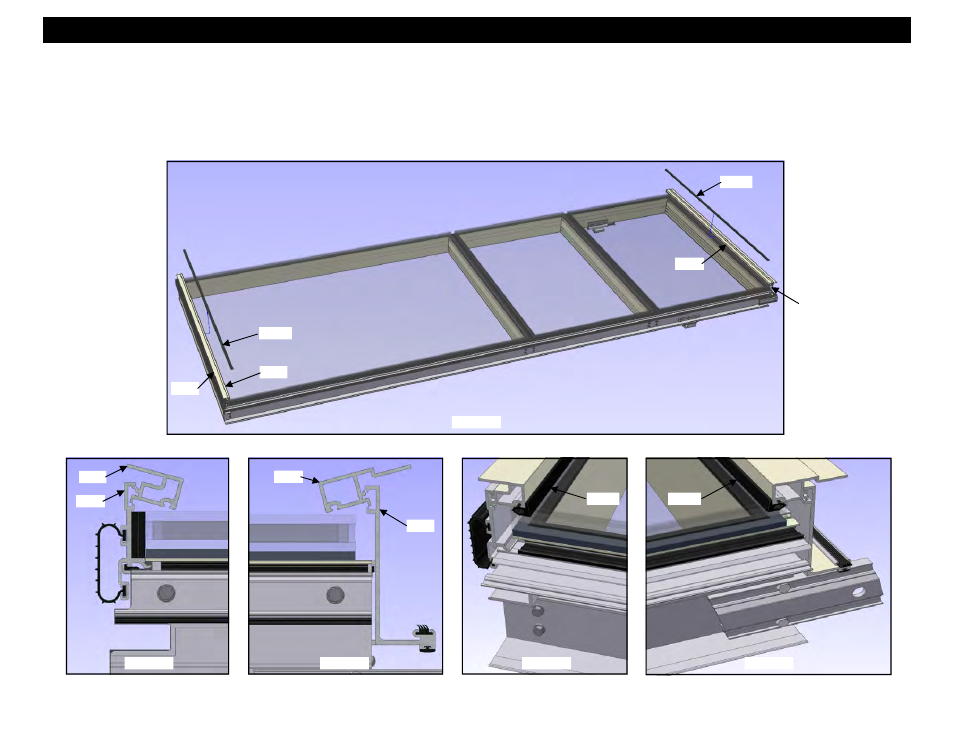

10. Insert 17K1 glazing retainer into 17B5 and roll into position (See Figure 73). Insert 17K0 glazing retainer into 17B1 and roll into position (See Figure 74). The

glazing retainers will be flush with the ends of the adapters.

11. Drive in WC22 wedge gasket between 17K0, 17K1 and the glazing infill as shown in Figures 75 and 76. Start in the center, then move to the ends crowding

in as much gasket as possible (approximately 4% to 5% extra). Do not stretch the gasket during application. The WC22 should be trimmed to the same
length as 17K0 and 17K1.

Figure 72

Figure 73

Figure 75

Figure 76

Figure 74

17K1

WC22

17B5

17B1

17K0

WC22

17K1

17K0

17B5

17B1

WC22

WC22
