EFCO 2009

Page 27

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

12. Slide WC20 bulb gasket into 17A2 captured vertical fin bar. Exercise care to avoid stretching the gasket during installation. Let the bulb gasket extend

approximately 1 1/2” longer than 17A2 on each end. The bulb gasket should be installed prior to applying 17A2.

13. Crimp the bulb in place to prevent slippage during unit installation. Crimp at each end of the adapter, and then about 24” on center.
14. Roll the 17A2 captured vertical fin bar into the isolator in each vertical mullion of the assembled unit (See Figures below).
15. Adjust the 17B5 stack sill adapter so that it is flush with the 17A2 vertical fin bar on each end as shown in Figure 78.

Section 6 - Captured Unit Glazing: C. Adapter and Cover Installation

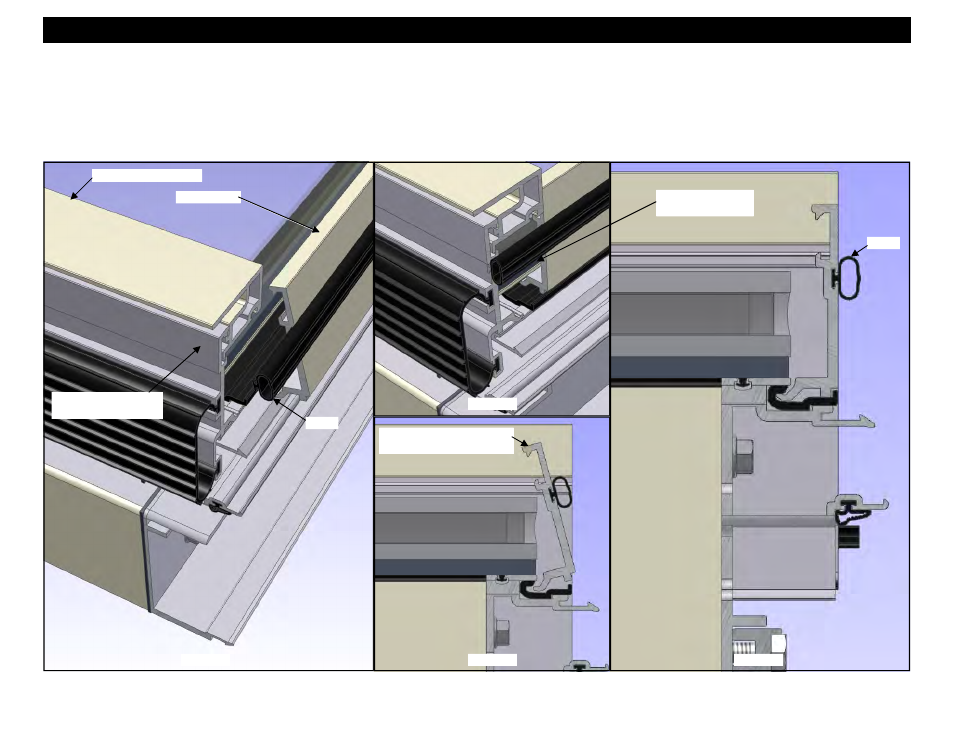

Figure 77

17B5 Captured Stack

Sill Glazing Adapter

Figure 78

Figure 79

Figure 80

WC20

17K1 Glazing Retainer

17A2 Fin Bar

Extend WC20 on
each end as shown.

WC20

Insert 17A2 into the isolator

and roll into position.
