EFCO 2009

Page 11

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

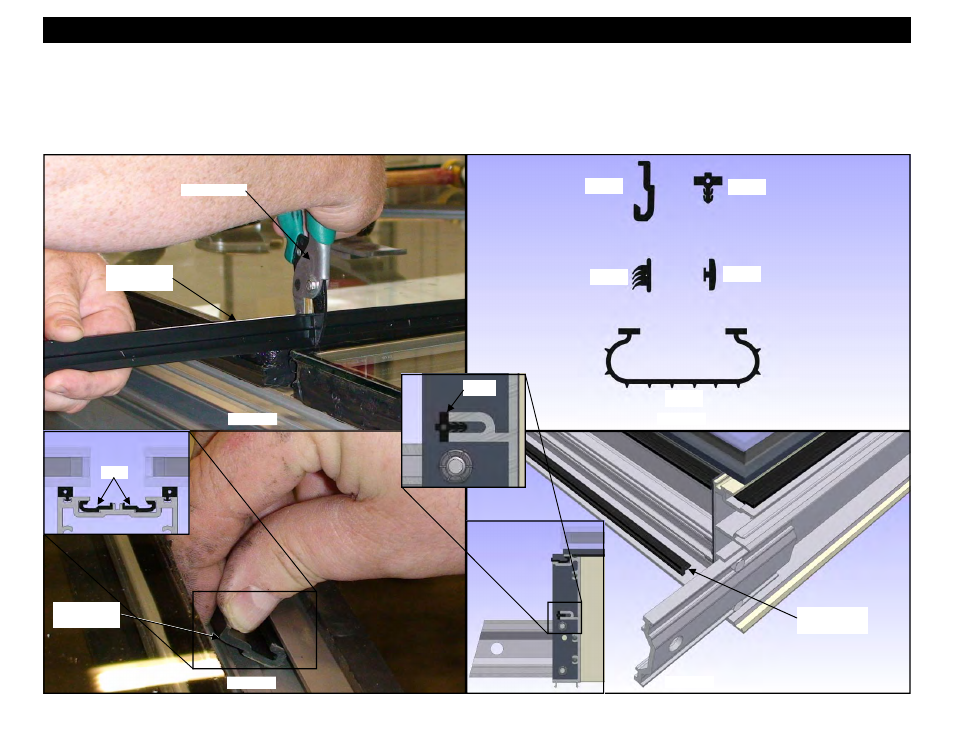

1. After sealant has cured, cut L142 to length with vinyl cutters. Apply the thermal isolator L142 into the verticals and horizontals. L142 is supplied in 10’-0”

lengths. L142 may be used in several pieces to accommodate the required length. By butting multiple pieces together, waste will be avoided and the desired
length can be obtained.

2. Apply the preset thermal isolator (WC16) to the head, running the gasket continuously between the vertical mullions (See Figure 18).
3. Figure 17 shows the various isolators and gaskets used in this section.

Section 5 - SSG Unit Glazing: C. Adapter Installation

Figure 15

Figure 16

L142 Thermal

Isolator Clip

Vinyl Cutters

WC16

LC23

L142

WC19

WC17

Figure 17

Figure 18

WC16

WC16 Isolator
Gasket

L142

L142 Thermal

Isolator Clip
