Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

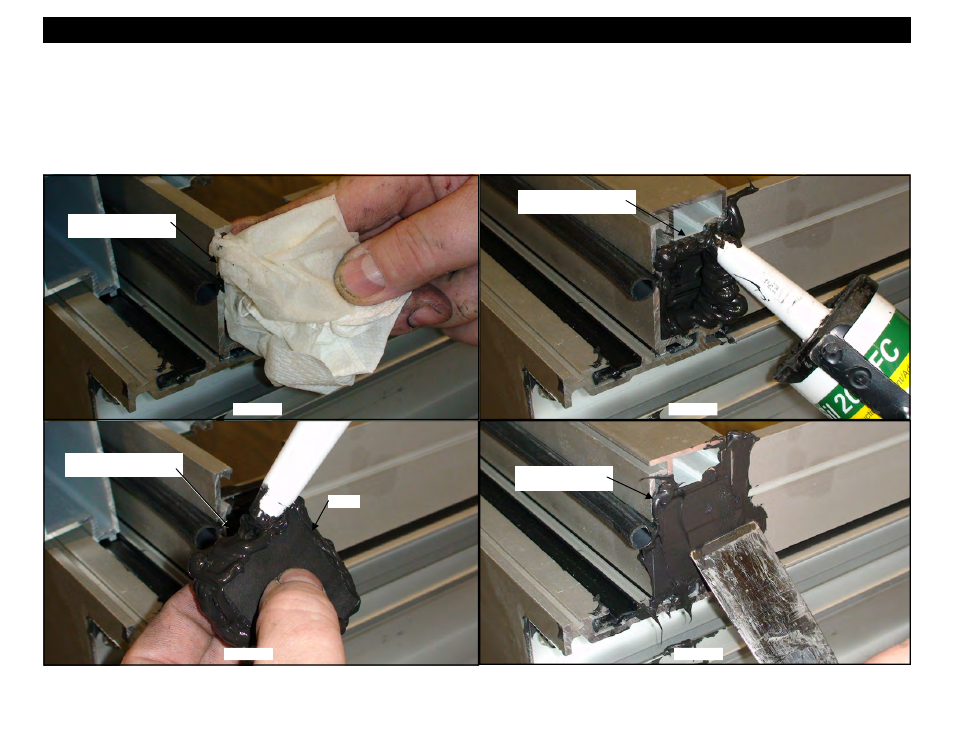

2. Examine the joint plugs, and if contamination has occurred, clean them if necessary.
3. Apply a heavy bead of sealant around the joint plug on the sealant contact surfaces (See Figure 94).
4. Insert the joint plug into the opening between the adapter and covers at the head and sill of the unit.
5. Apply beads of sealant over the joint plug as shown in Figure 95.
6. Tool the sealant smooth, filling the voids around the joint plug.

Figure 93

Section 6 - Captured Unit Glazing: D. Joint Plug Installation

Figure 95

Figure 94

Figure 96

Apply a bead of sealant

around the joint plug.

Clean with approved

cleaner.

Apply sealant around

the joint plug.

Tool the sealant

over the joint plug.
