EFCO 2009

Page 24

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

4. Apply 17B5 Captured glazing adapter to the stack sill. Final adjustment of the 17B5 will be made after the vertical glazing adapters are applied.
5. Slide the WC17 horizontal stack joint rain screen gasket into position as shown in Figures 65, 66, and 67. WC17 runs the same length as 17B5 and is applied

flush with each end of 17B5.

6. Insert HS31 setting blocks (2 at each location) between the stack sill glazing adapter and the glass at quarter points, or as directed per the final approved

shop drawings. Light prying pressure may need to be applied to the glazing adapter to insert the setting blocks into place.

Section 6 - Captured Unit Glazing: C. Adapter and Cover Installation

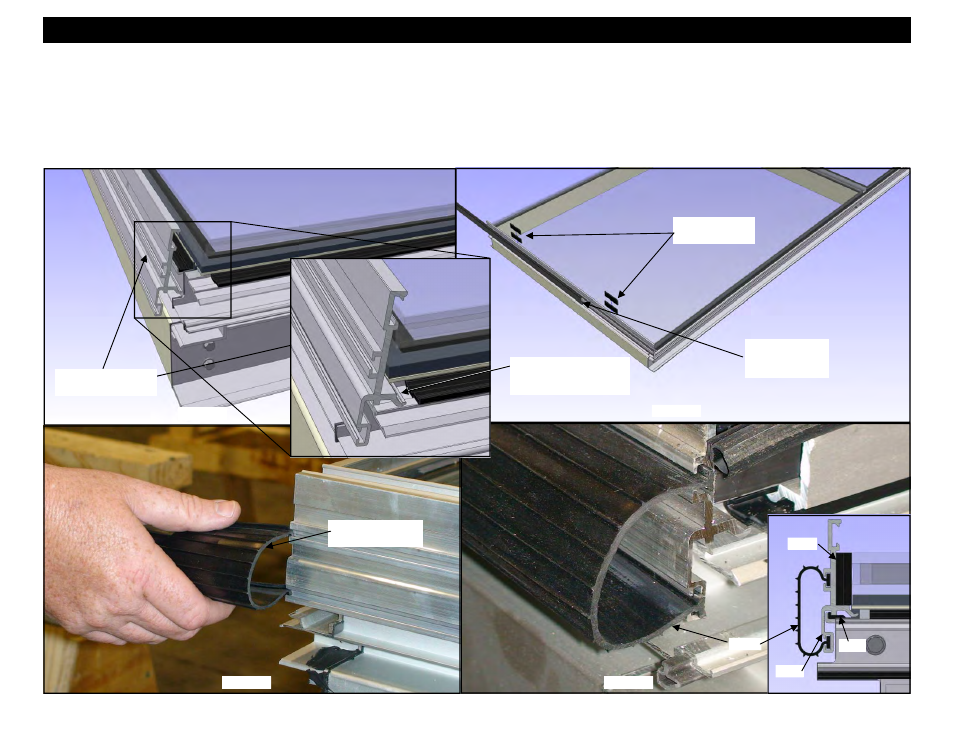

Figure 64

Figure 65

Figure 66

Figure 67

17B5 Captured Stack

Sill Glazing Adapter

Slide WC17 gasket
into 17B5

L142 stops 3/4” short of
the end of the mullion at
this location.

(4) HS31 Setting
Blocks

WC17 Horizontal
Stack Joint Rain
Screen Gasket

WC17

HS31

17B5

L142
