EFCO 2009

Page 29

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

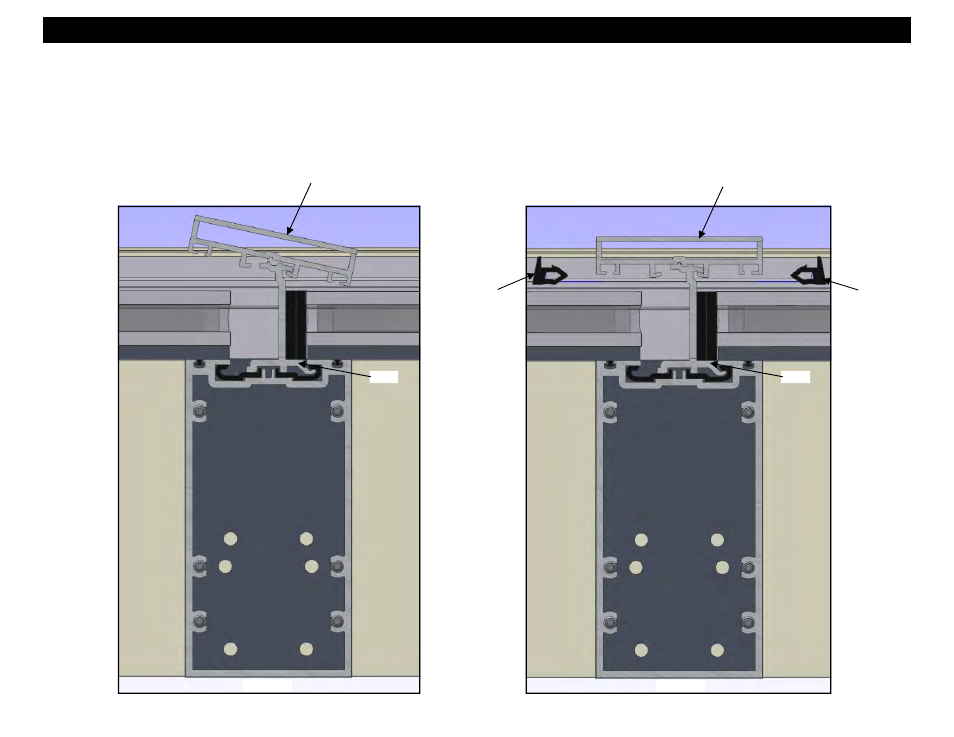

23. Insert 17B8 cover onto 17B9 captured glazing adapter and rotate into place as shown in Figures 86 and 87.
24. Cut the WC22 gaskets approximately 2” longer than the D.L.O. dimension.
25. Drive in WC22 wedge gaskets starting with the gasket on the setting block side of the glazing pocket. The gaskets should be applied starting in the center of

the D.L.O., and then working from the ends, work the gasket in place to the center of the lite.

Section 6 - Captured Unit Glazing: C. Adapter and Cover Installation

Figure 86

Figure 87

WC22

Wedge

Gasket

17B8 Cover

17B9

17B9

17B8 Cover

WC22
Wedge
Gasket
