Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

4. Apply 17B7 SSG glazing adapter to the stack sill. Final adjustment of the 17B7 will be made after the vertical glazing adapters are applied.
5. Slide the WC17 horizontal stack joint rain screen gasket into position as shown in Figures 20, 21, and 22. WC17 runs the same length as 17B7 and is applied

flush with each end of 17B7.

6. Insert HS32 setting blocks between the stack sill glazing adapter and the glass at quarter points, or as directed per the final approved shop drawings. Light

prying pressure may need to be applied to the glazing adapter to insert the setting blocks into place. Use care so that the glazing is not damaged.

Section 5 - SSG Unit Glazing: C. Adapter Installation

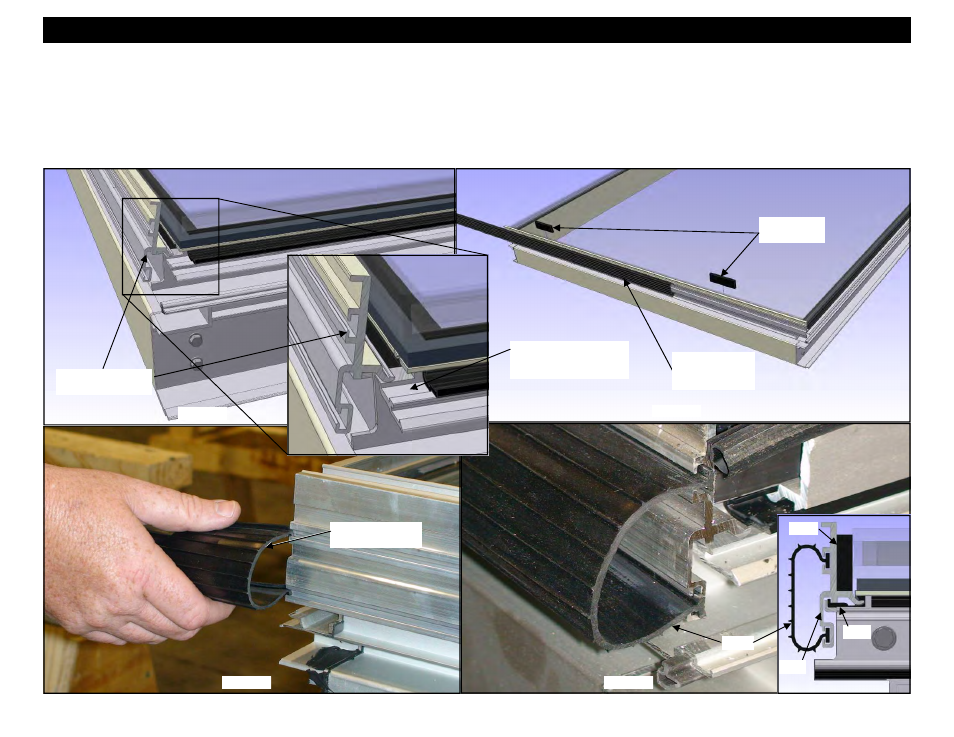

Figure 19

Figure 20

Figure 21

Figure 22

WC17

L142

HS32

17B7 SSG Stack Sill

Glazing Adapter

Slide WC17 gasket
into 17B7

17B7

L142 stops 3/4” short of
the end of the mullion at
this location.

WC17 Horizontal
Stack Joint Rain
Screen Gasket

HS32 Setting
Blocks
