EFCO 2009

Page 19

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

Section 5 - SSG Unit Glazing: E. Jamb Mullion Installation

5. Clean the end dam of all oils and contaminants and apply a bed of sealant to the jamb corresponding to where the end dam will be applied.
6. Before the sealant begins to cure or skin over from steps 1 and 2, apply the gutter end dam flush with the underside and notched face of the gutter with (2)

STT6 screws.

7. Apply a heavy bead of sealant where the top of the gutter and the inside of the end dam meet (See figure 46). Tool all of the sealant around the end dam

smooth.

8. Insert L142 isolator into the jamb mullion and roll on the 17A9 jamb mullion cover (See Figures 47 and 48). Center 17A9 between the gutter and the stack sill

glazing adapter with equal spacing on each end.

9. Drive in WVD1 wedge gasket between 17A9 and the jamb mullion (See Figures 47 and 48).

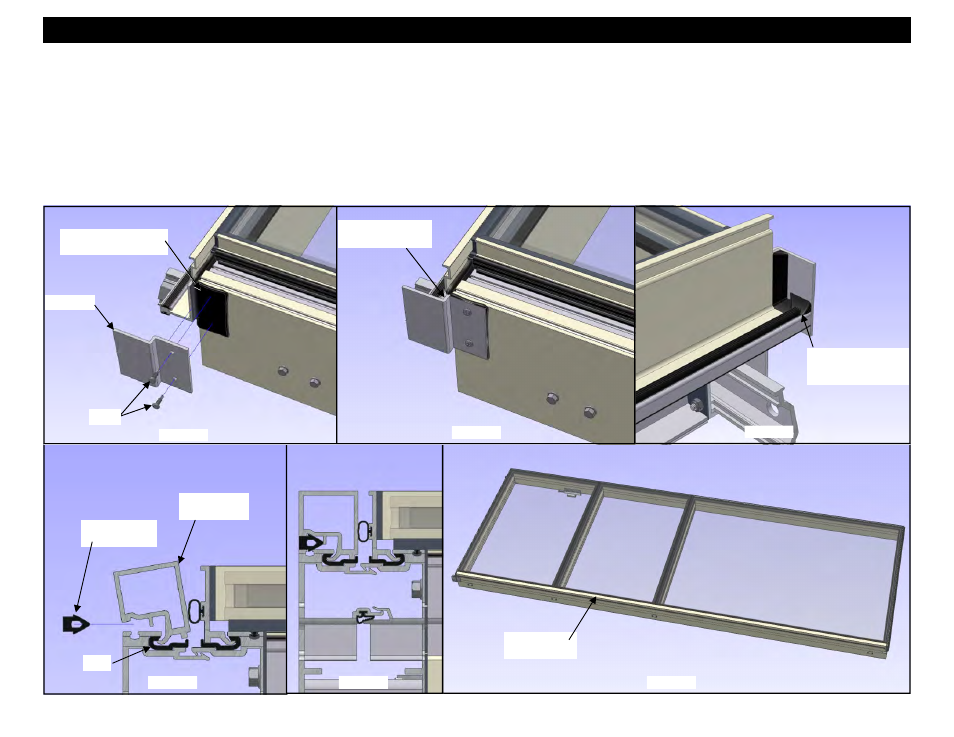

Figure 44

Figure 45

Figure 46

Figure 49

Figure 48

Figure 47

Apply a bed of sealant

for the end dam

End Dam

STT6

17A9 Jamb

Mullion Cover

WVD1 Wedge

Gaskets

17A9 Jamb

Mullion Cover

Apply the end dam

flush with notch.

Tool sealant smooth,
blending it into the
adjacent surfaces.

L142
