3.3.2 Installing SIMMs
Installing a SIMM is a simple two step process. After finding the proper
SIMM slot location, refer to Figure 3-3 and the following instructions to
install your SIMM.

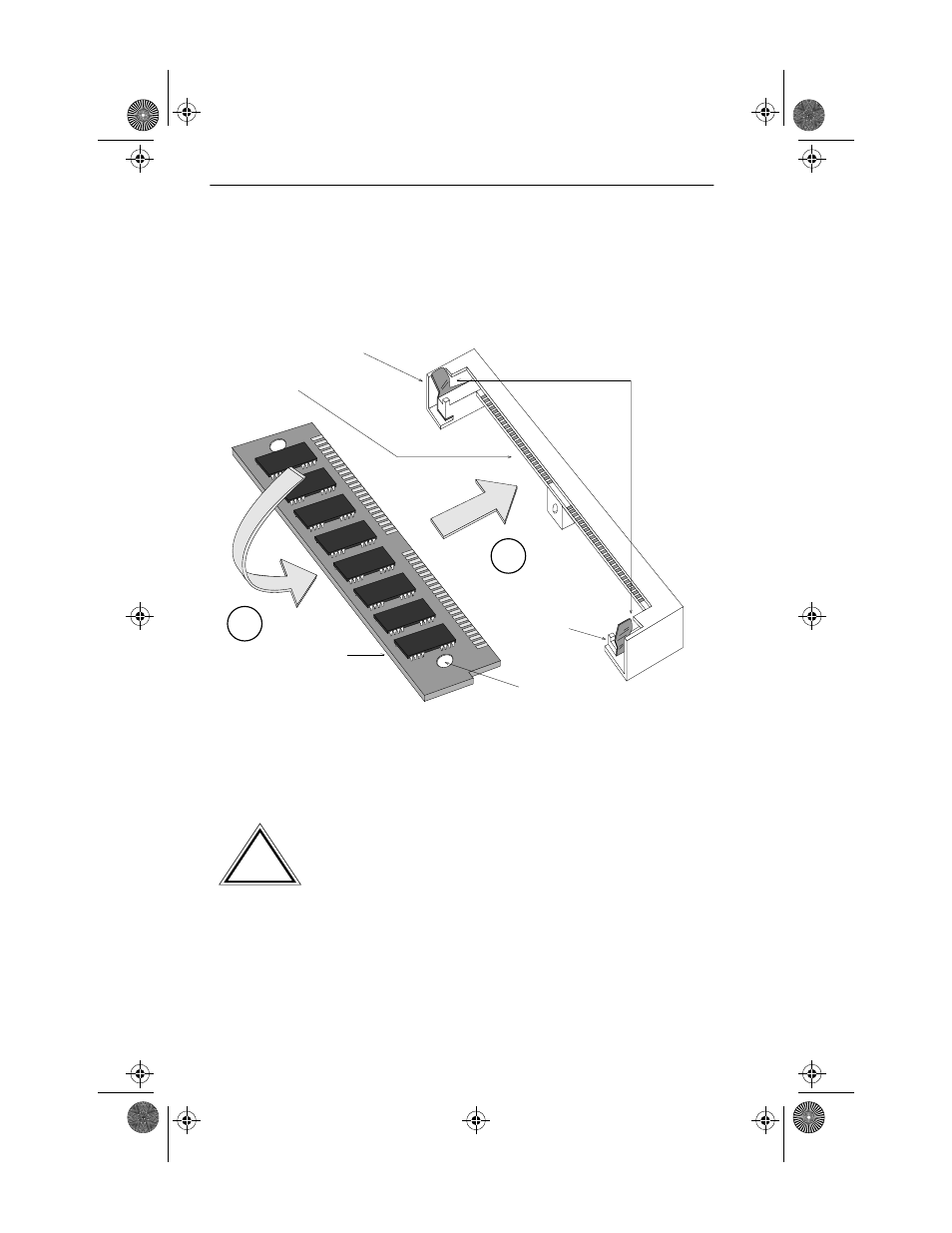

Figure 3-3. Installing a SIMM
To install a SIMM:
1. Insert the SIMM between the connector teeth in the SIMM slot.
2. Pivot the SIMM back until it locks into the clips in the SIMM slot,
and the SIMM holes fit over the SIMM slot posts.
2
1
SIMM
Clips Connector
Teeth
SIMM Slot
SIMM Hole
SIMM Slot
Post
Observe all anti-static precautions when handling
sensitive electronic equipment.
!
CAUTION
