1.2 EMM-E6 FEATURES
• i960 Processor Design
• IEEE 802.1d Compliant
• Available Routing Services
• Special Filtering Database
• Six port Ethernet Bridge
• Integrated BRIM technology
• User Configurable EPIMs
• Expandable Flash EEPROM
Memory and Runtime download
• Expandable Local DRAM
• Expandable Shared DRAM
• SNMP and RMON Support
• LANVIEW Diagnostic LEDs
• DLM Support
• Local Communication Ports
• UPS Proxy Agent Support
• In-Band Telnet with MIB
Navigator
• Port Locking and
LANVIEW
SECURE Support

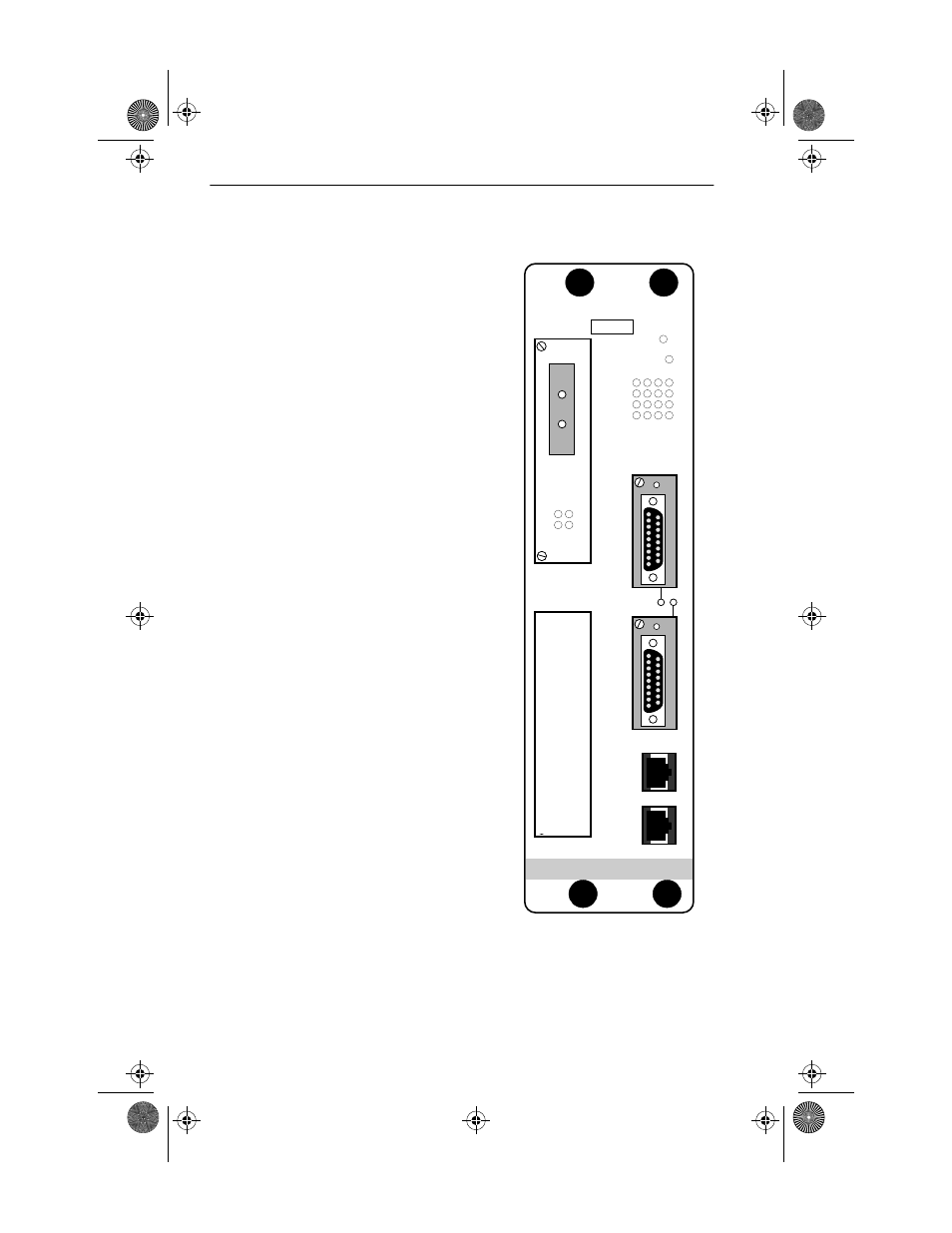

EMM-E6
