5-21
Cisco XR 12410 and Cisco XR 12810 Router Installation Guide
OL-17441-01
Chapter 5 Maintaining the Router
Removing and Replacing AC and DC Power Subsystem Components
Step 6 Remove the rear chassis components ( Figure 5-12 ):
a. Loosen the (6) captive screws on the AC horizontal trough and remove it.
b. Loosen the (16) captive screws that secure the rear panel to the chassis and
remove it.
c. Remove the (4) screws securing the AC PDU to the chassis and remove the
PDU.

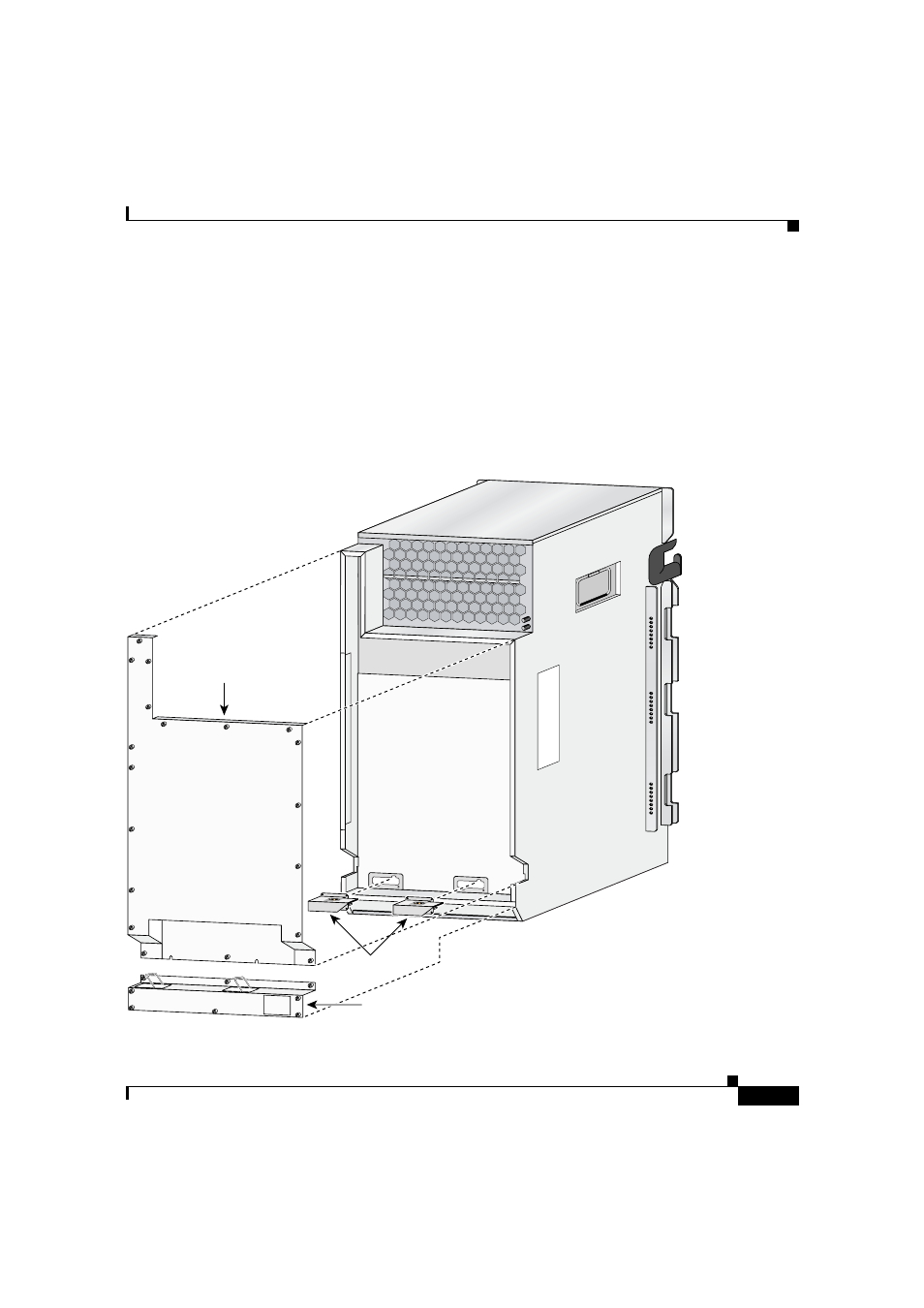

Figure 5-12 Removing Rear AC Chassis Components
53363
Rear panel
AC horizontal trough
AC PDUs
