Page 23

For PCI card information, see "

Installing Expansion Cards

" in "Installing System Options."

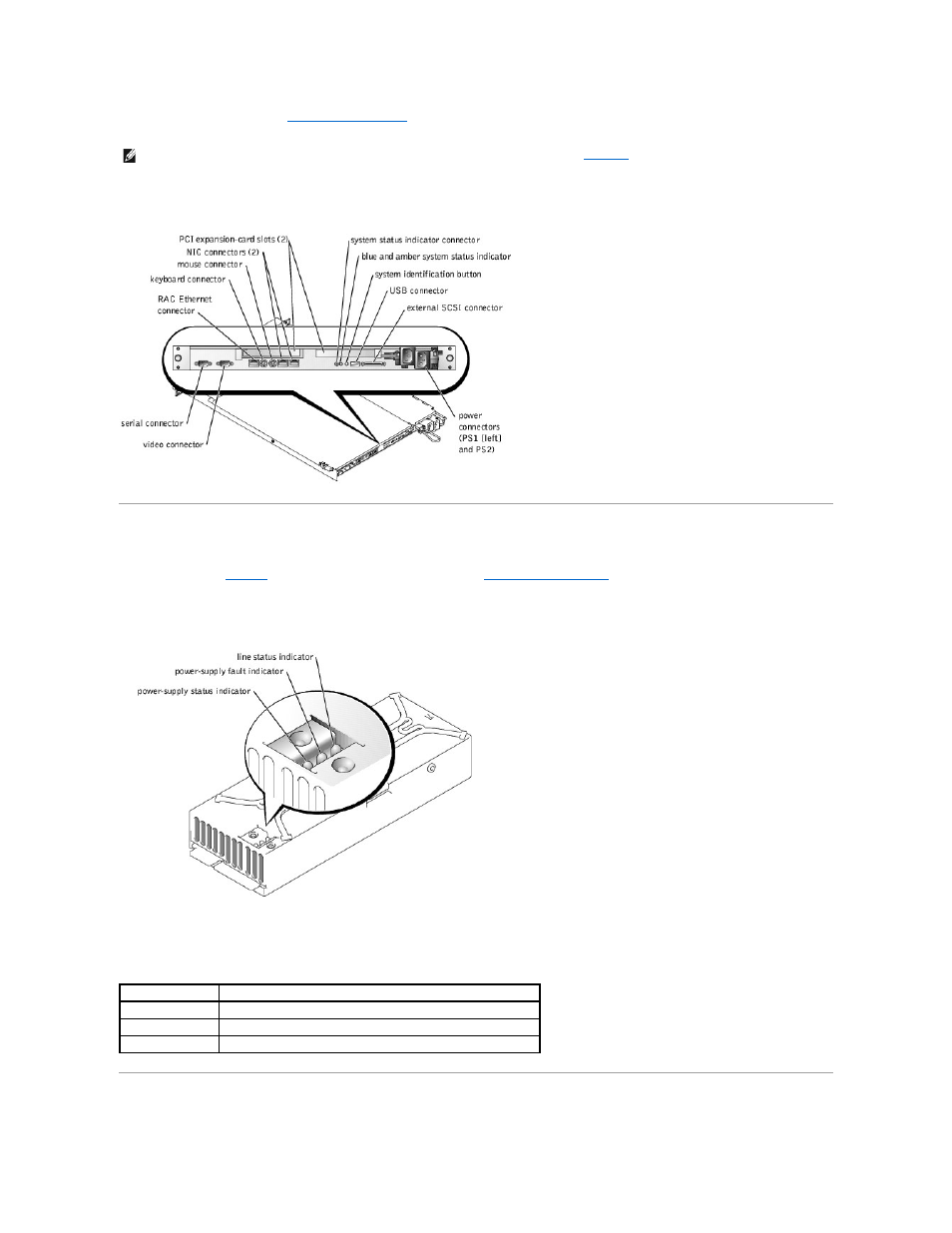

Figure 2-4. Back-Panel Features and Indicators

Power Supply Features

Each hot-pluggable power supply has three indicators, visible when the system covers are open, that indicate whether power is present or whether a power

fault has occurred. See

Table 2

-4

for more information about the indicators. See "

Opening the System Covers

" in "Troubleshooting Your System" for

information about accessing the inside of the system.

Figure 2-5. Power Supply Features

Table 2-4. Power-Supply Indicator Patterns

System Messages

NOTE:

Connect the power cable to connector PS1 if your system only has one power supply. See

Figure 2

-4

Indicator

Indicator Code

Line status

Green indicates that a valid power source is connected to the system.

Power-supply fault

Red indicates a problem with the power supply.

Power-supply status Green indicates that the power supply is operational.
