90
Installing System Components

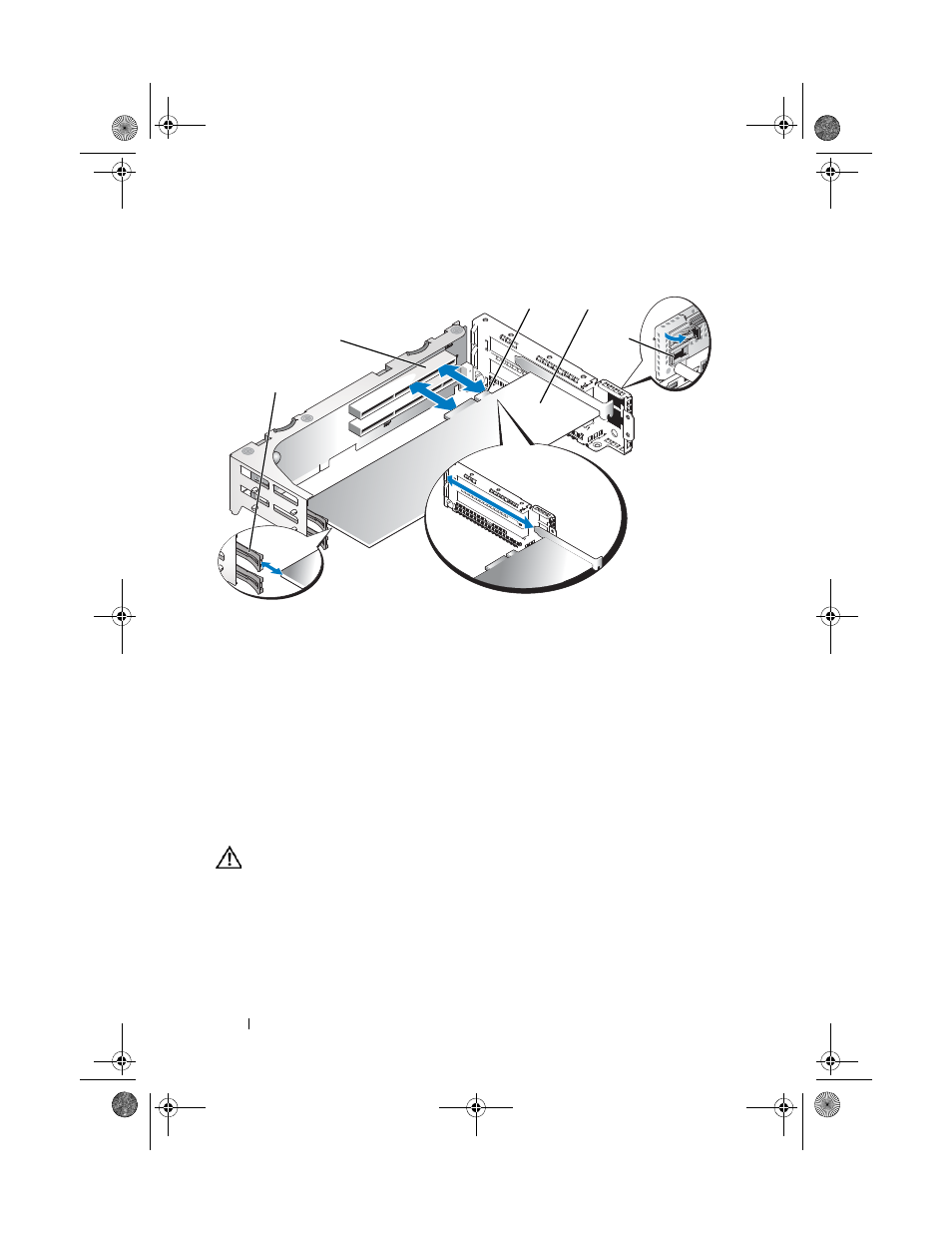

Figure 3-14. Installing an Expansion Card
6 Connect any expansion-card cables for the new card.
See the documentation that came with the card for information about its
cable connections.
7 Close the system. See "Closing the System" on page 67.
Removing an Expansion Card
CAUTION:
Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
1 front card guide 2 expansion-card connector
3 card-edge connector 4 expansion card
5 expansion-card guide latch
5
1
3
2
4
