Installing System Components
123

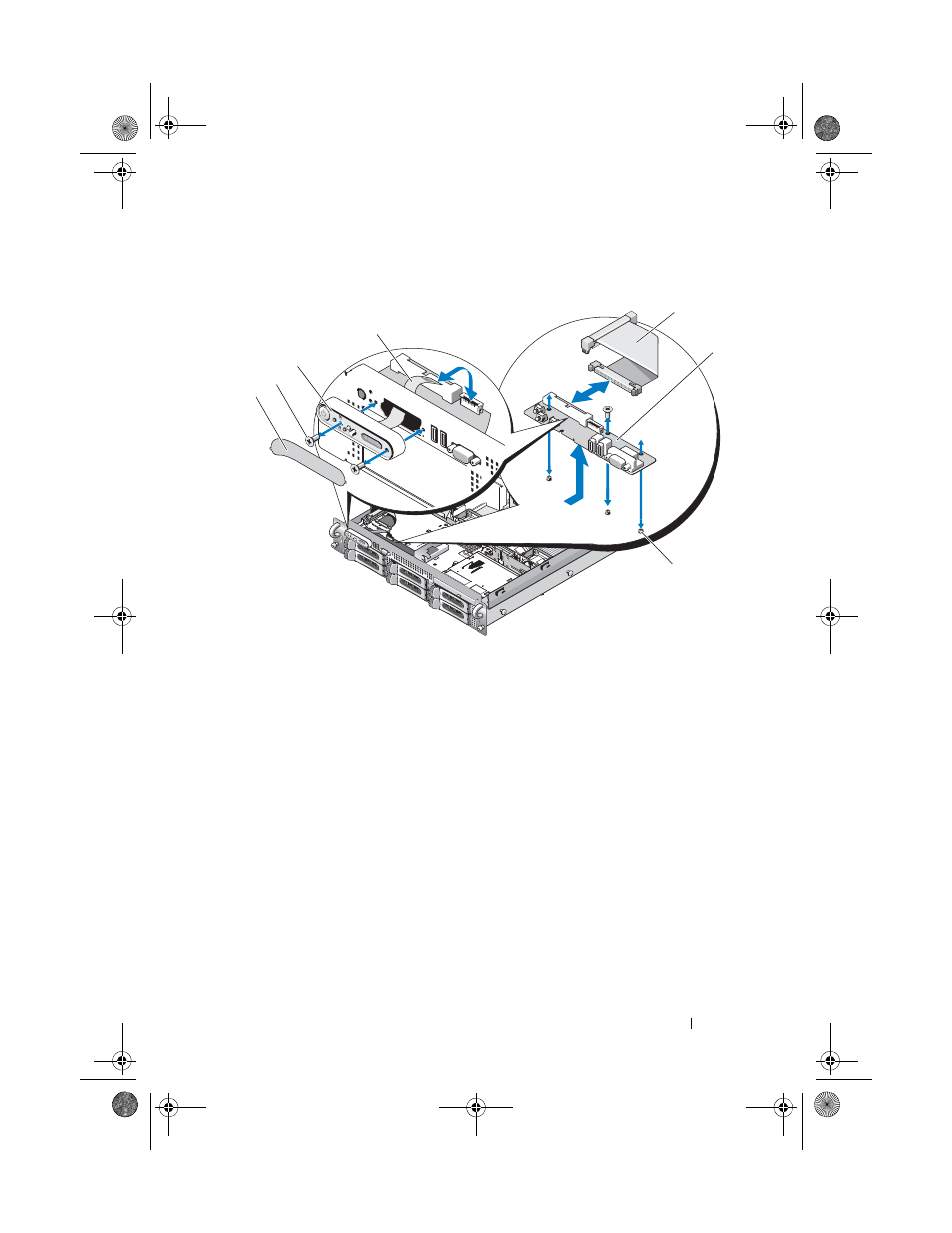

Figure 3-27. Control Panel Removal
Installing the Control Panel Assembly
1 Insert the display module into the chassis cutout and secure with the two
Torx screws.
2 Affix the display module label to the display module.
3 Install the control panel board in the system chassis and secure with the
three Phillips screws. See Figure 3-27.
4 Connect the display module cable to the control panel board. See
Figure 3-27.
1 display module label 2 display module securing screws (2)
3 display module 4 display module cable
5 control panel cable 6 control panel circuit board
7 control-panel circuit board
securing screws (3)
5
6
2
7
1
3
4
