108
Installing System Components

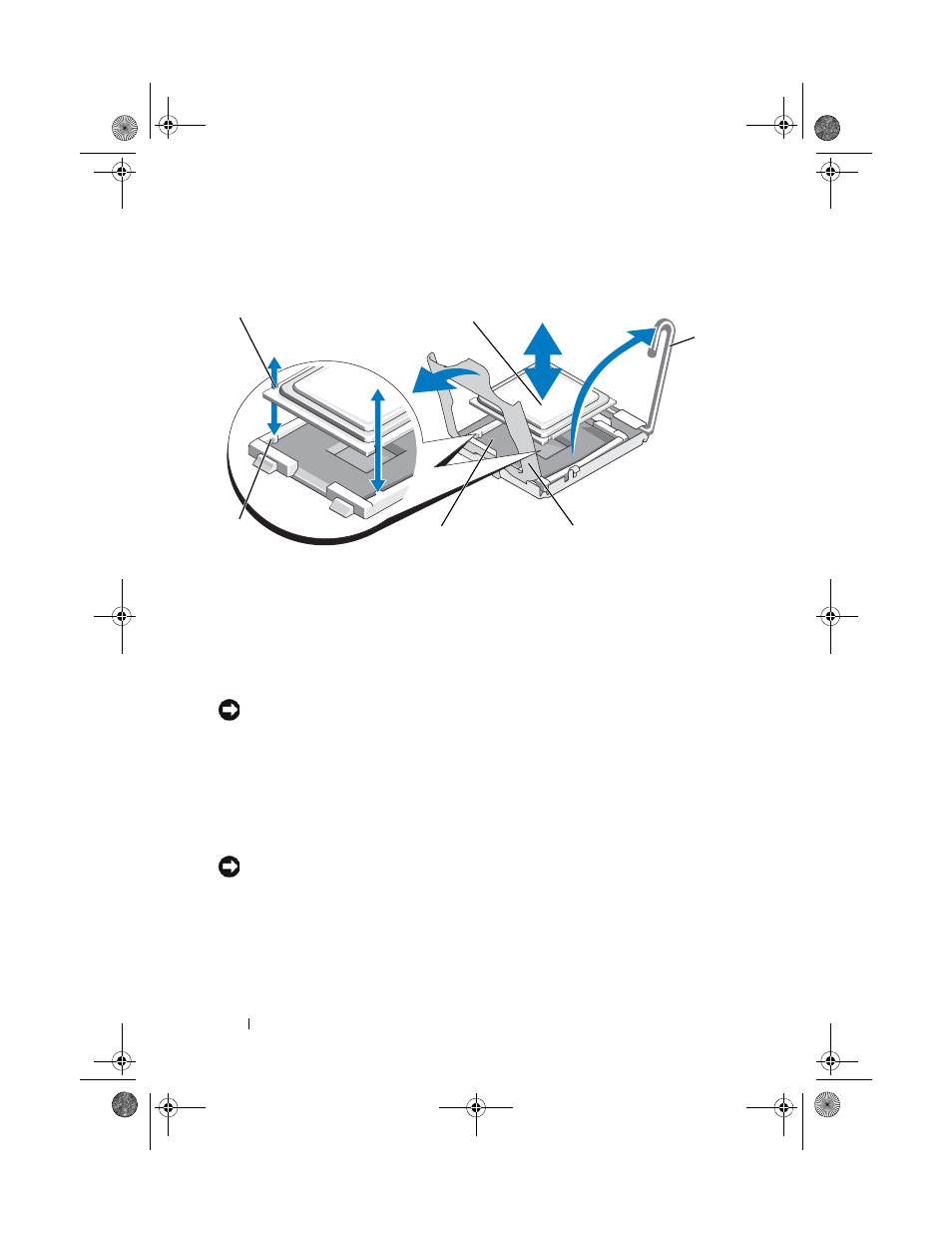

Figure 3-21. Installing and Removing a Processor
13 Lift the processor out of the socket and leave the release lever up so that
the socket is ready for the new processor.
NOTICE:
Be careful not to bend any of the pins on the ZIF socket when removing
the processor. Bending the pins can permanently damage the system board.
Installing a Processor
1 Unpack the new processor.
2 Align the processor with the socket keys on the ZIF socket. See Figure 3-21.
3 Install the processor in the socket.
NOTICE:
Positioning the processor incorrectly can permanently damage the
system board or the processor when you turn it on. When placing the processor in
the socket, be careful not to bend the pins in the socket.
a If the release lever on the processor socket is not positioned all the way
up, move it to that position.
1 notch in processor (2) 2 processor
3 socket-release lever 4 processor shield
5 ZIF socket 6 socket key (2)
3
6
4 5
1 2
