Jumpers and Connectors
157
Jumpers and Connectors
This section provides specific information about the system jumpers and
describes the connectors on the various boards in the system.
System Board Jumpers
Figure 6-1 shows the location of the configuration jumpers on the system
board. Table 6-1 lists the jumper settings.
NOTE:
To access the jumpers, remove the cooling shroud by lifting the release
latch and sliding the shroud towards the front of the system. See Figure 3-9.
NOTE:
Lift up the memory module airflow shroud for easy access to the jumpers.

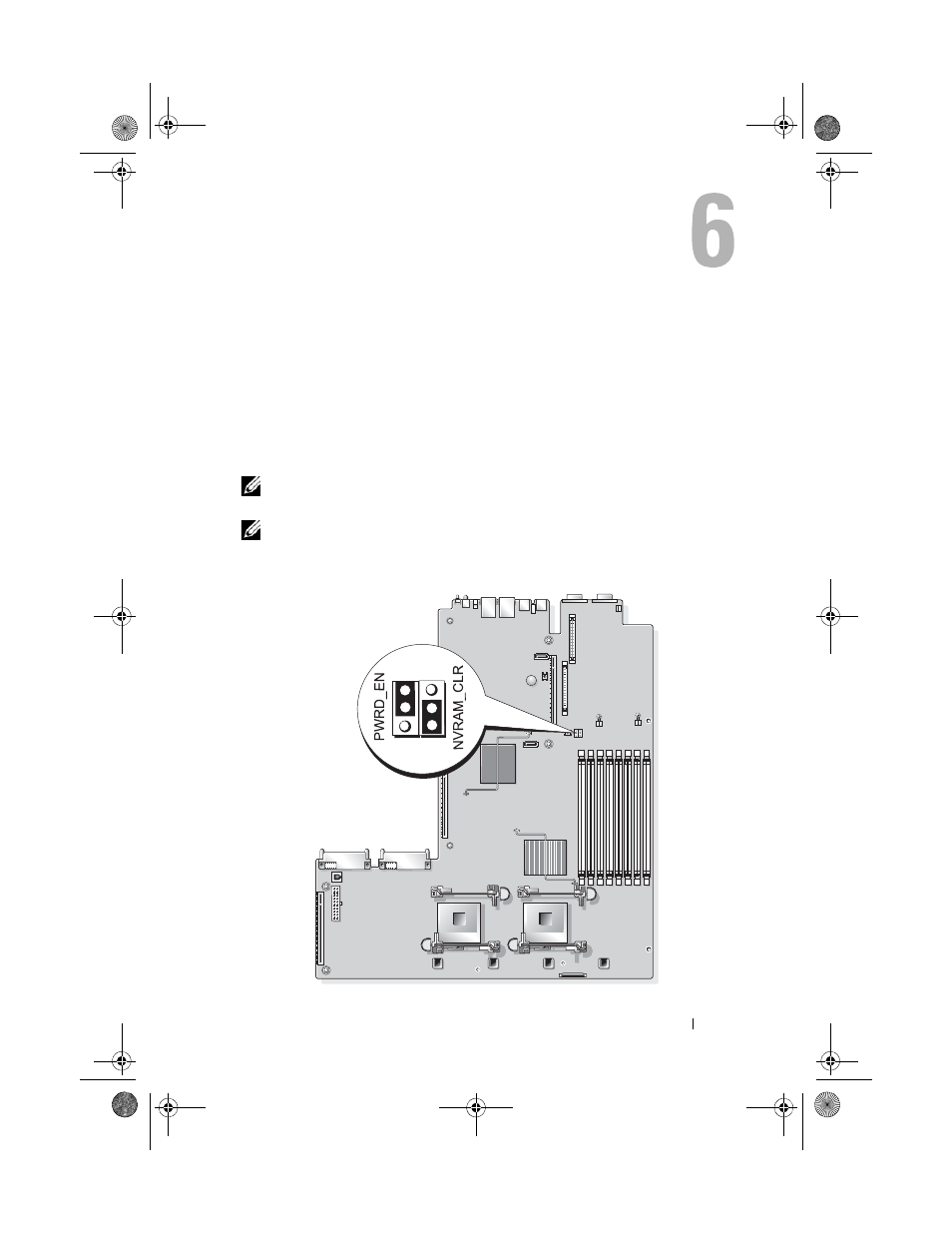

Figure 6-1. System Board Jumpers
