Installing System Components
115

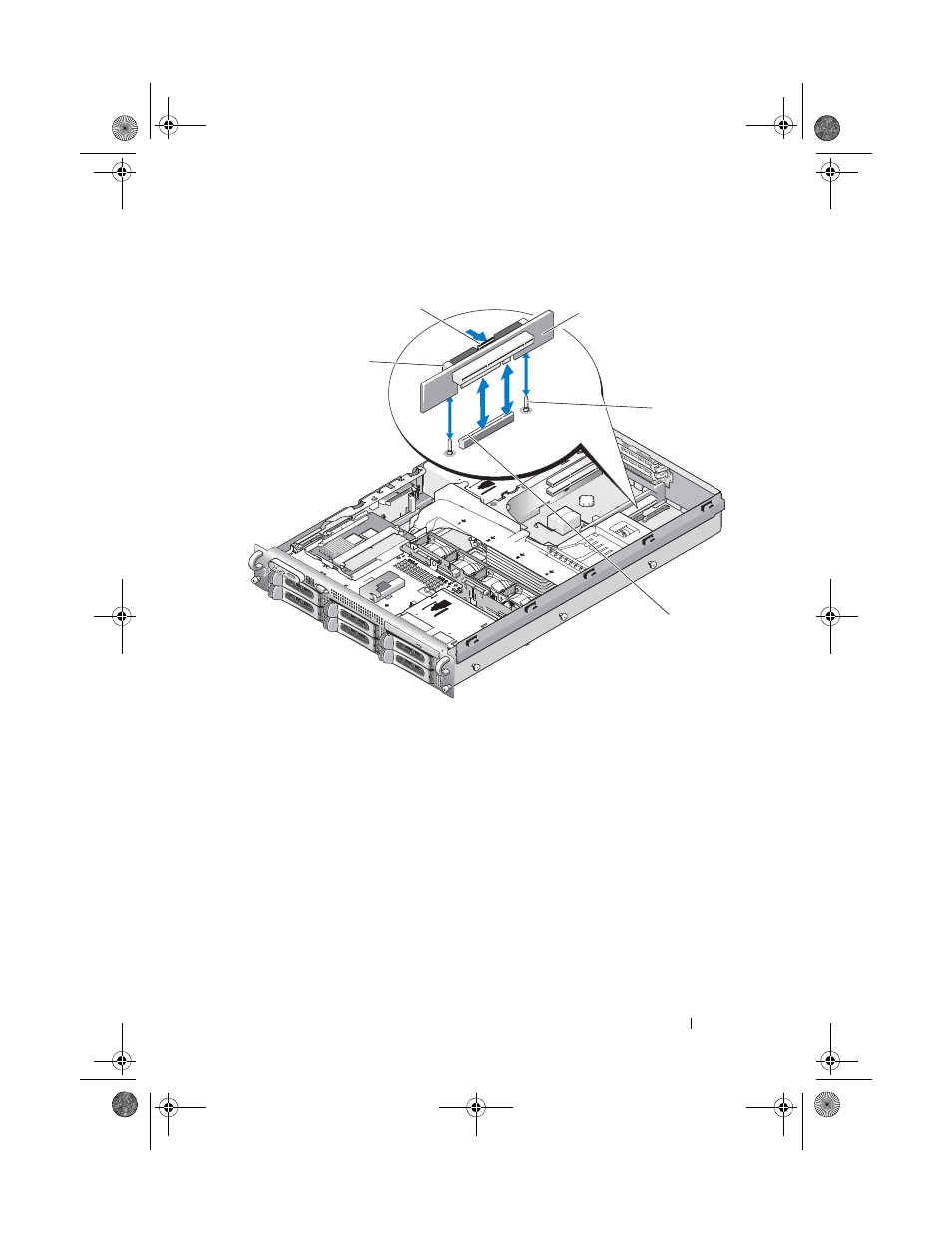

Figure 3-24. Installing the Central Riser Board
Installing the Central Riser Board
1 Fitting the two guides over the guide pins on the system board, gently
lower the central riser board until the board connector is firmly seated into
the system board socket. See Figure 3-24.
2 Replace any PCI cards that were removed from the central riser. See
"Installing an Expansion Card" on page 88.
3 Replace the cable retention bracket. See "Installing the Cable Retention
Bracket" on page 84.
1 card guide (2) 2 release tab
3 central riser board 4 guide pins (2)
5 system board socket
4
3
2
5
1
