166 Installing System Components

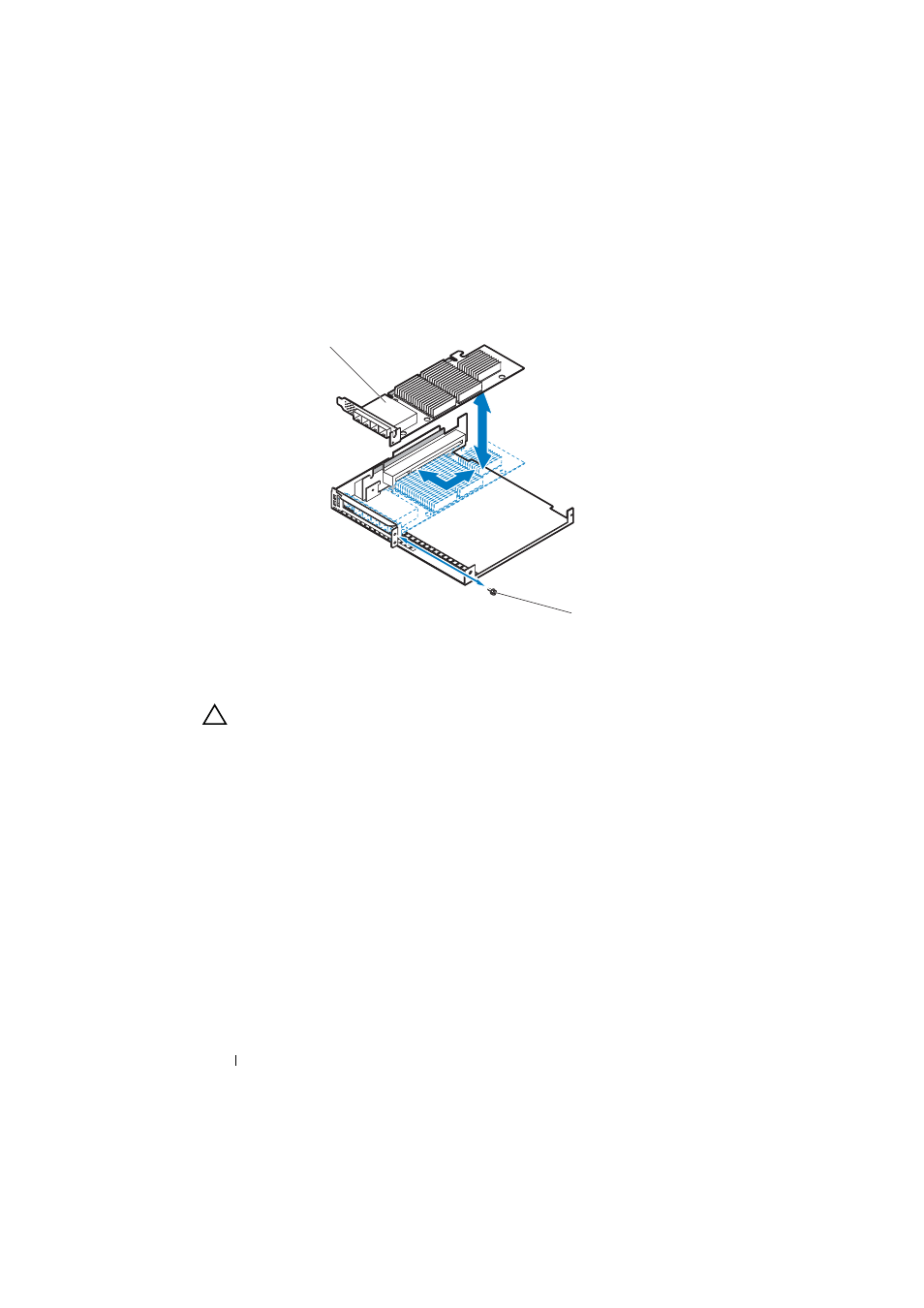

Figure 3-18. Removing and Installing the Expansion Card
Installing the Expansion Card
CAUTION: Expansion cards can only be installed in the slots on the expansion
card riser. Do not attempt to install expansion cards directly into the riser
connector on the system board.
1 Unpack the expansion card and prepare it for installation. For instructions,
see the documentation accompanying the card.
2 Hold the card by its edges, position the card so that the card edge
connector aligns with the expansion card riser connector on the front
cover. See Figure 3-18.
3 Insert the card edge connector firmly into the riser connector until the
card is fully seated.
4 Replace the screw securing the expansion card. See Figure 3-18.
5 If applicable, connect any cables to the expansion card.
6 Replace the front cover. See "Installing the Front Cover" on page 149.
7 Replace the sled. See "Installing a Sled" on page 144.
1 expansion card 2 M3 screw (1)
2
1
