Installing System Components 187

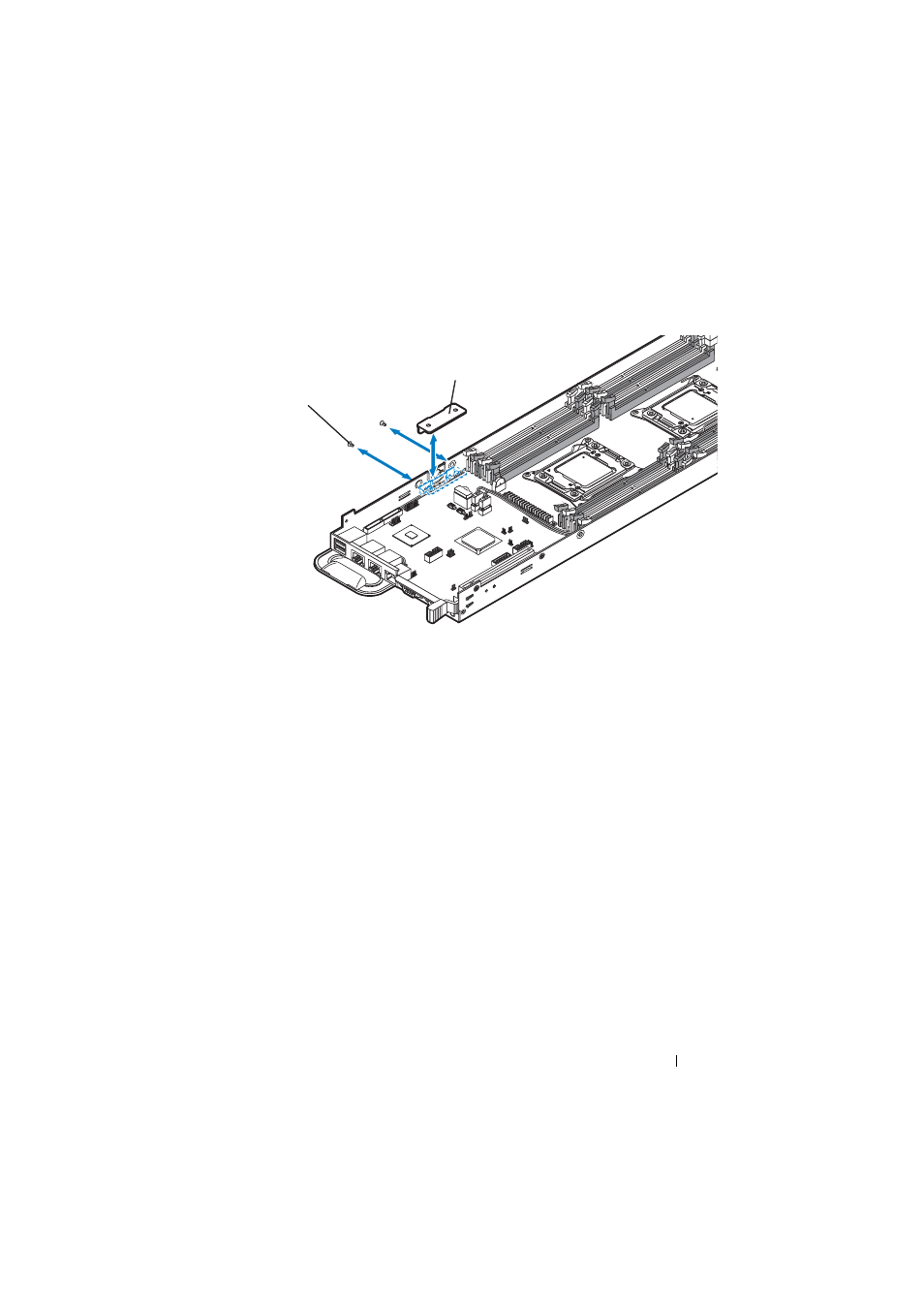

Figure 3-33. Removing and Installing the MicroSD Card Reader Support Bracket
Installing the MicroSD Card Reader Support Bracket
1 Align the MicroSD card reader support bracket with the screw holes on the
sled tray. See Figure 3-33.
2 Replace the two screws securing the MicroSD card reader support bracket.
See Figure 3-33.
3 Replace the MicroSD card reader. See "Installing the MicroSD Card
Reader" on page 185.
4 If applicable, replace the mezzanine card. See "Installing the Infiniband
Mezzanine Card" on page 179 or "Installing the 10 GbE Mezzanine Card"
on page 182.
5 If applicable, replace the RAID battery. See "Installing the RAID Battery"
on page 171.
6 Replace the front cover. See "Installing the Front Cover" on page 149.
7 Replace the sled. See "Installing a Sled" on page 144.
1 M3 screws (2) 2 MicroSD card reader support
bracket
1
2
