Installing System Components 191
Removing the Hard-Drive Tray
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized is not covered by
warranty. Read and follow the safety instructions that came with the product.
1 Remove the sled from the enclosure. See "Removing a Sled" on page 143.
2 Remove the back cover. See "Removing the Back Cover" on page 150.
3 Remove the internal hard-drives. See "Removing a Hard-Drive Carrier" on
page 188.
4 Remove the three screws securing the hard-drive tray. See Figure 3-36.
5 Lift the hard-drive tray at an angle and slide the standoff holes on the
hard-drive tray out of the sled tray standoffs. See Figure 3-36.

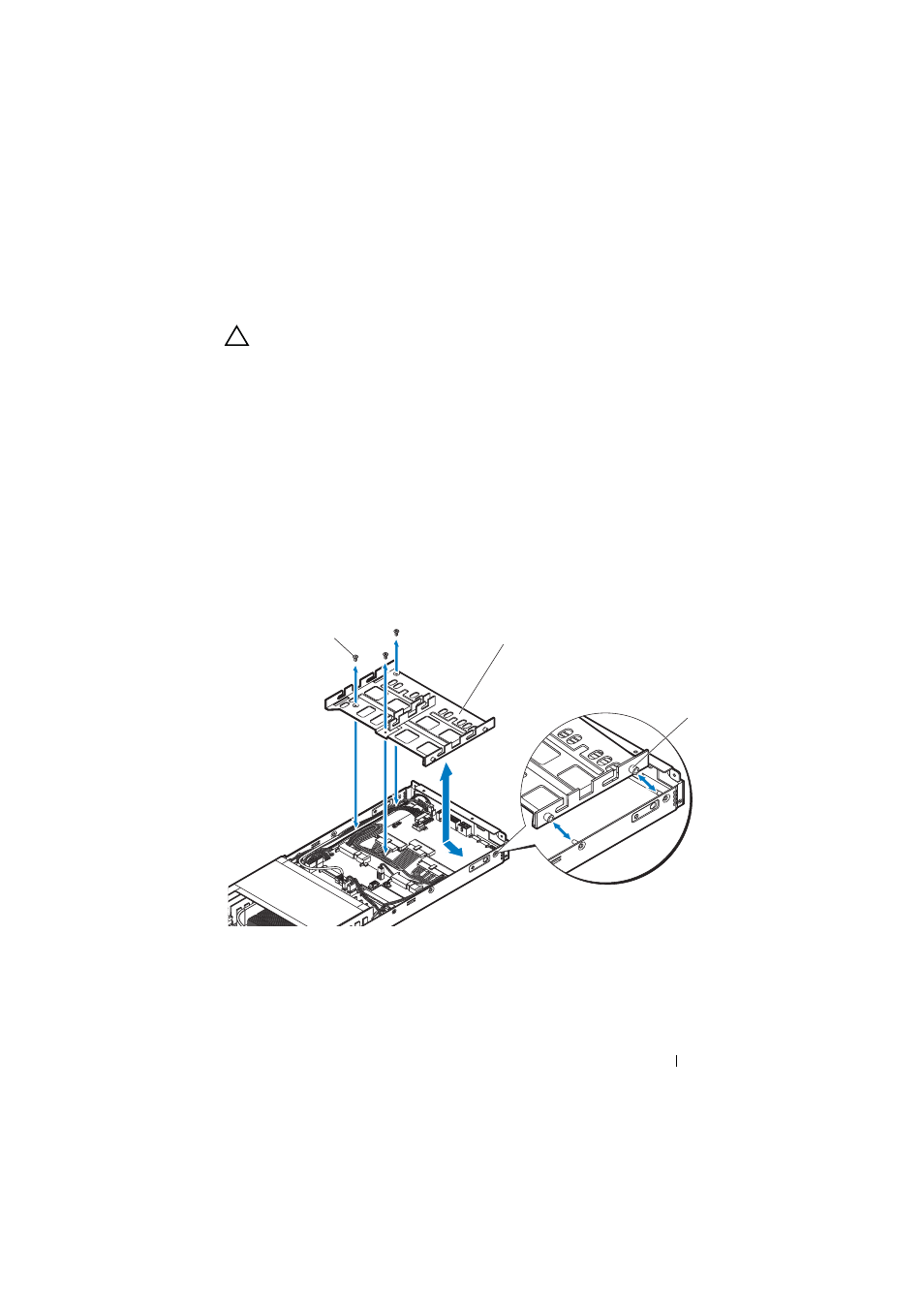

Figure 3-36. Removing and Installing the Hard-Drive Tray
1 M3 screws (3) 2 hard-drive tray
3 hard-drive tray standoff holes (2)
1 2
3
