Optical Drive
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\optical.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
Replacing the Optical Drive
CAUTION:
Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
This procedure assumes that you have completed the removal procedure
"Removing the Optical Drive" on page 91.
1 Connect the optical drive cable to the connector on the system board.
2 Replace the M2 x 5-mm screw to secure the optical drive to the system
board.
3 Replace the palm rest (see "Replacing the Palm Rest" on page 81).
4 Replace the display assembly (see "Replacing the Display Assembly" on
page 67).
5 Replace the keyboard (see "Replacing the Keyboard" on page 58).

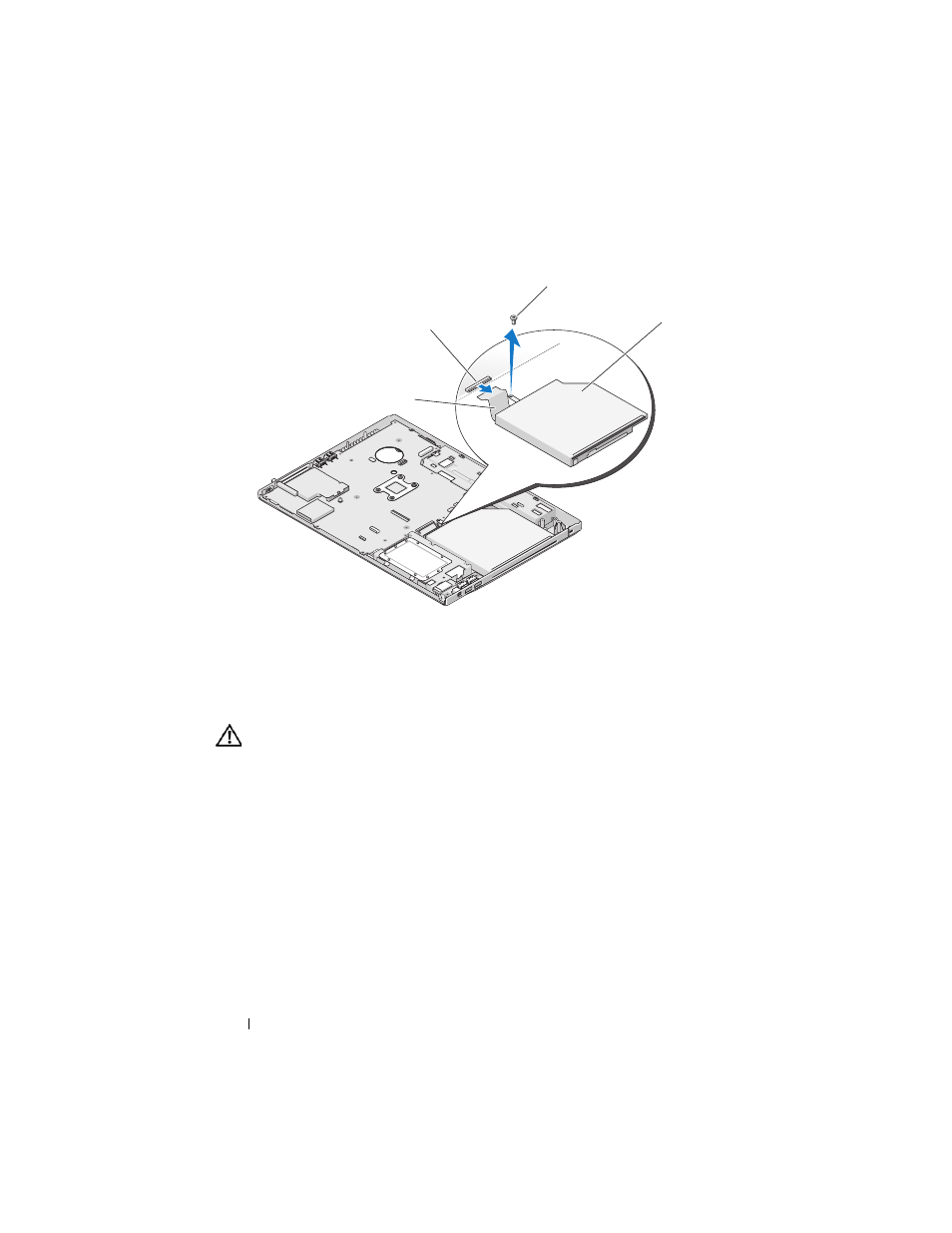

1 optical drive cable 2 optical drive connector
3 M2 x 5-mm screw (1) 4 optical drive
2
3
4
1
