Internal Card With Bluetooth
®
Wireless Technology
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\btooth.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
Replacing the Card
CAUTION:
Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
This procedure assumes that you have completed the removal procedure
"Removing the Card" on page 87.
1 Connect the cable to the card.
2 Replace the card in the card compartment.
3 Replace the M2 x 3-mm screw that connects the card to the USB board.
4 Replace the palm rest (see "Replacing the Palm Rest" on page 81).
5 Replace the display assembly (see "Replacing the Display Assembly" on
page 67).
6 Replace the keyboard (see "Replacing the Keyboard" on page 58).

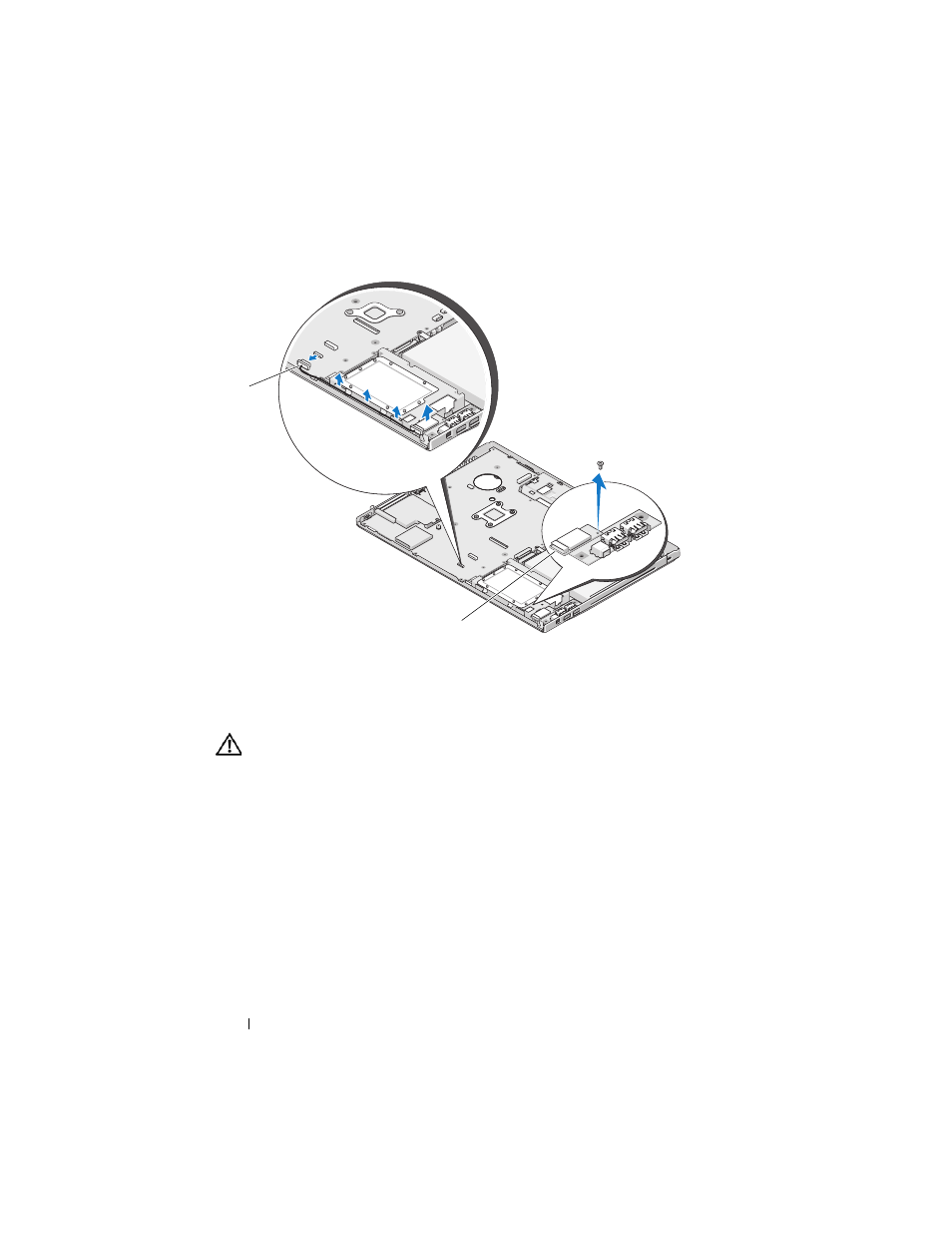

1 card cable connector 2 card
