Fingerprint Reader
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\fingprint.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
Replacing the Fingerprint Reader
CAUTION:
Before you begin the following procedure, follow the safety
instructions that shipped with your computer.
NOTICE:
Ensure that the touch pad cable and the cable for the internal card with
Bluetooth
®
wireless technology are properly routed before snapping the palm rest
into place.
This procedure assumes that you have completed the removal procedure
"Removing the Fingerprint Reader" on page 83.
1 Position the fingerprint reader on the underside of the palm rest.
2 Connect the fingerprint reader cable connector to the fingerprint reader
connector and rotate the retaining bracket downward to secure the cable.
3 Replace the fingerprint reader cover and replace the M2 x 3-mm screw that
secures the cover to the palm rest.
4 Replace the palm rest (see "Replacing the Palm Rest" on page 81).

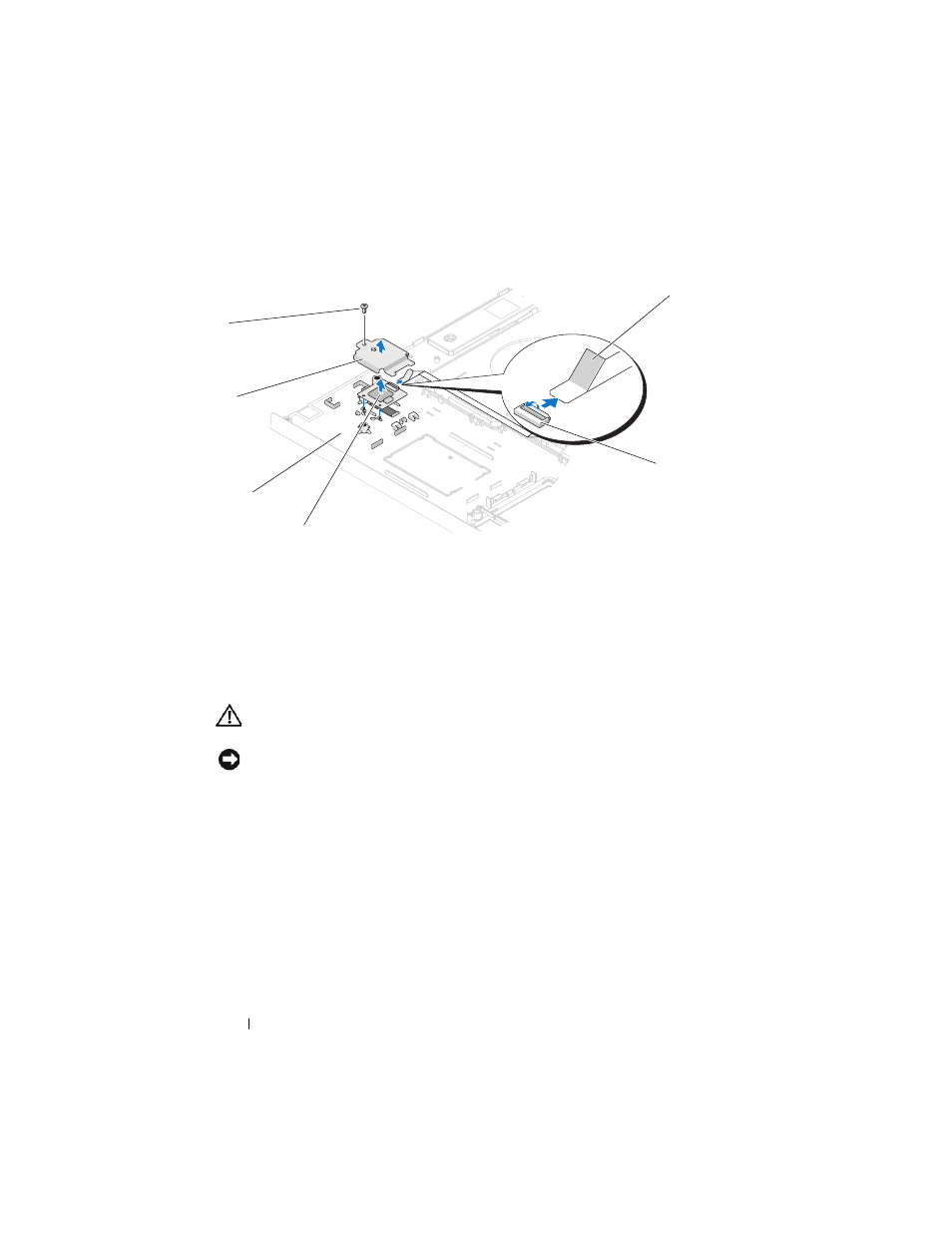

1 M2 x 3-mm screw 2 fingerprint reader cover
3 underside of palm rest 4 fingerprint reader
5 fingerprint reader connector with
retaining bracket 6 fingerprint reader cable
1
2
3
4
6
5
