7 Remove the four rubber display-bumpers and two mylar screw-covers from
around the display bezel.
8 Remove the six M2.5 x 5-mm shoulder screws from around the display
bezel.
NOTICE:
Removal of the bezel from the top cover requires extreme care to avoid
damage to the bezel.
9 Starting at the middle bottom of the display panel, use your fingers to
separate the bezel from the top cover, then lift the inside edges to separate
the remainder of the bezel.

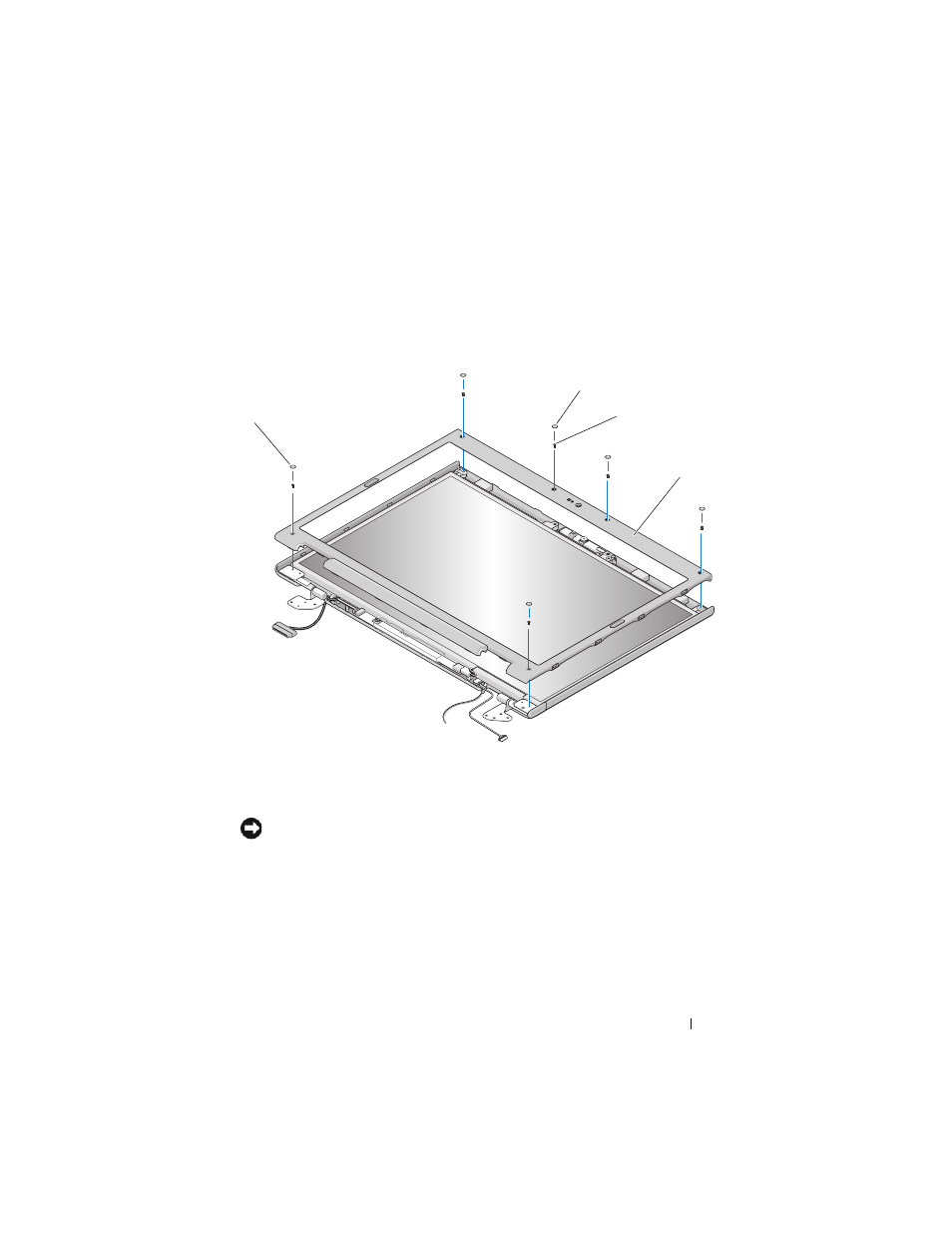

1 mylar screw covers (2) 2 rubber display bumpers (4)
3 M2.5 x 5-mm shoulder screws (6) 4 display bezel
