Keyboard
FILE LOCATION: C:\Documents and Settings\sarah_cook\Desktop\Tsing
Ma\SM\A01\EN\Source\keyboard.fm
DELL CONFIDENTIAL – PRELIMINARY 9/4/09 - FOR PROOF ONLY
Replacing the Keyboard
CAUTION:
Before you begin any of the procedures in this section, follow the
safety instructions that shipped with your computer.
NOTICE:
The key caps on the keyboard are fragile, easily dislodged, and time-
consuming to replace. Exercise care when removing and handling the keyboard.
This procedure assumes that you have completed the removal procedure
"Removing the Keyboard" on page 57.
1 Slide the keyboard cable connector into the keyboard connector. on the
system board.

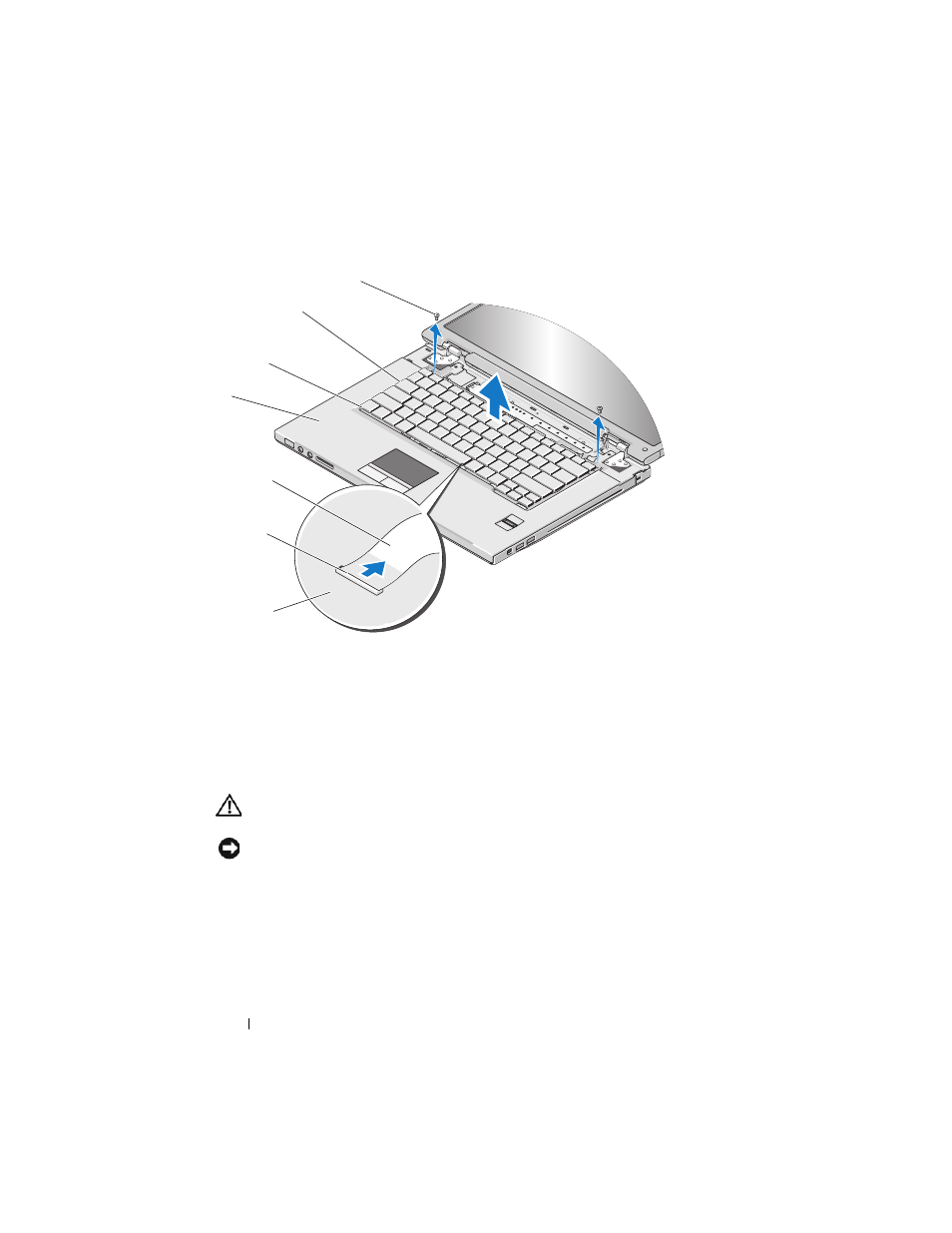

1 M2 x 3-mm screws (2) 2 keyboard
3 tabs (4) 4 palm rest
5 keyboard cable 6 keyboard cable connector
7 system board
1
2
5
6
3
4
7
