Replacing the Fan
CAUTION:
Before you begin the following procedure, follow the safety
instructions that shipped with your computer.
This procedure assumes that you have completed the removal procedure
"Removing the Fan" on page 41.
1 Align the screw holes on the fan with the holes on the base of the
computer.
2 Replace the three M2.5 x 5-mm screws to secure the fan to the base of the
computer.
3 Connect the fan connector to the system board connector.
4 Replace the memory cover and tighten the screws.

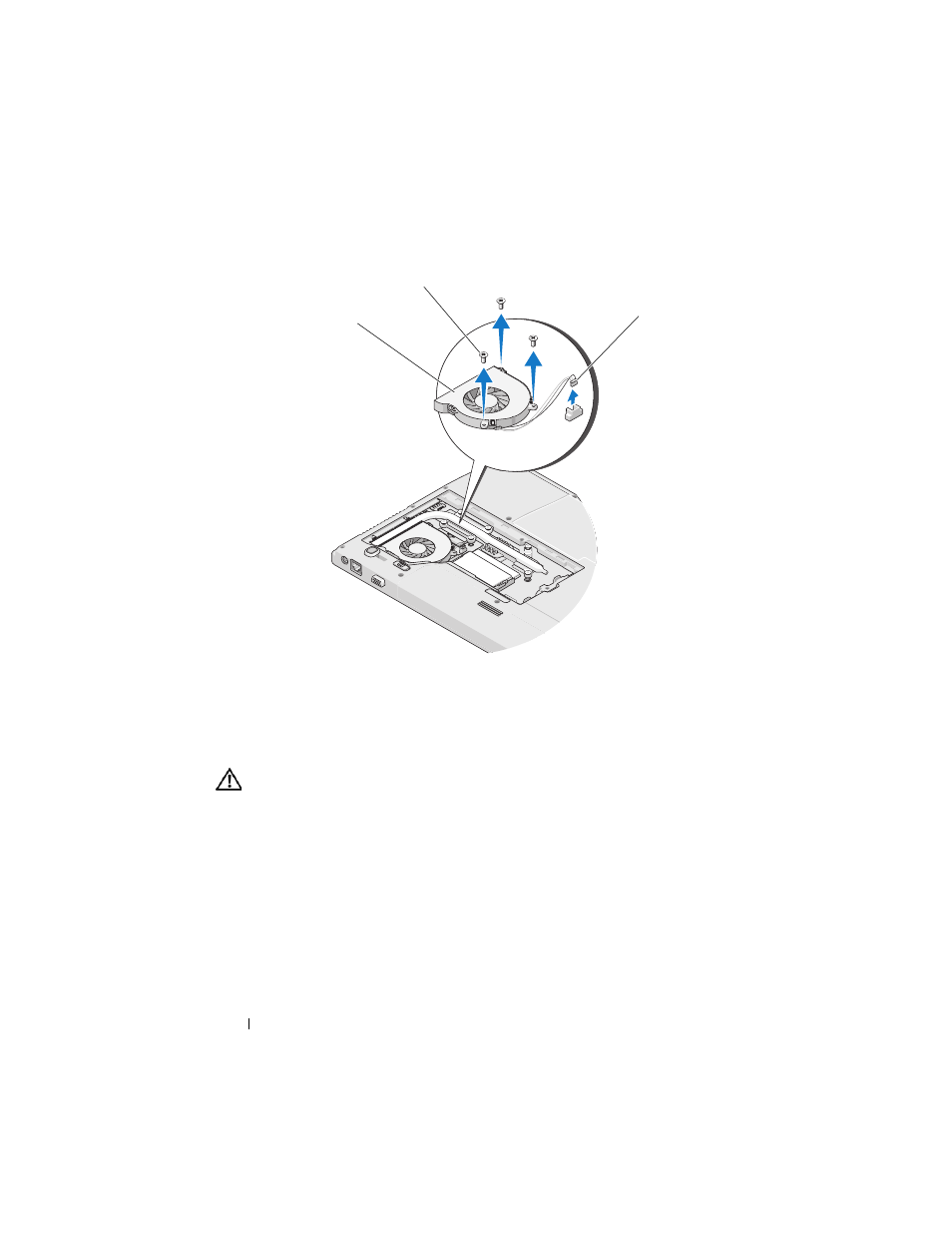

1 fan 2 M2.5 x 5-mm screws (3)
3 fan connector
