Removing and Replacing Parts: Dell PowerVault 735N Systems Service Manual

file:///C:/Users/Phebega_Pericho/Desktop/spv735N/en/sm/remove.htm[3/15/2013 4:18:18 PM]

Replacing the SEC Cartridge and Heat Sink Assembly

To install the replacement SEC cartridge and heat sink assembly, see

Figure 28

and perform the following steps:

1. Remove the

terminator card

or old

SEC cartridge

from the guide bracket assembly.

2. Slide the SEC cartridge into the guide bracket assembly, and firmly seat the assembly until the tabs on the guide bracket assembly snap

into place over the ends of the heat sink (see

Figure 28

).

3. Close the

system doors

.

System Board

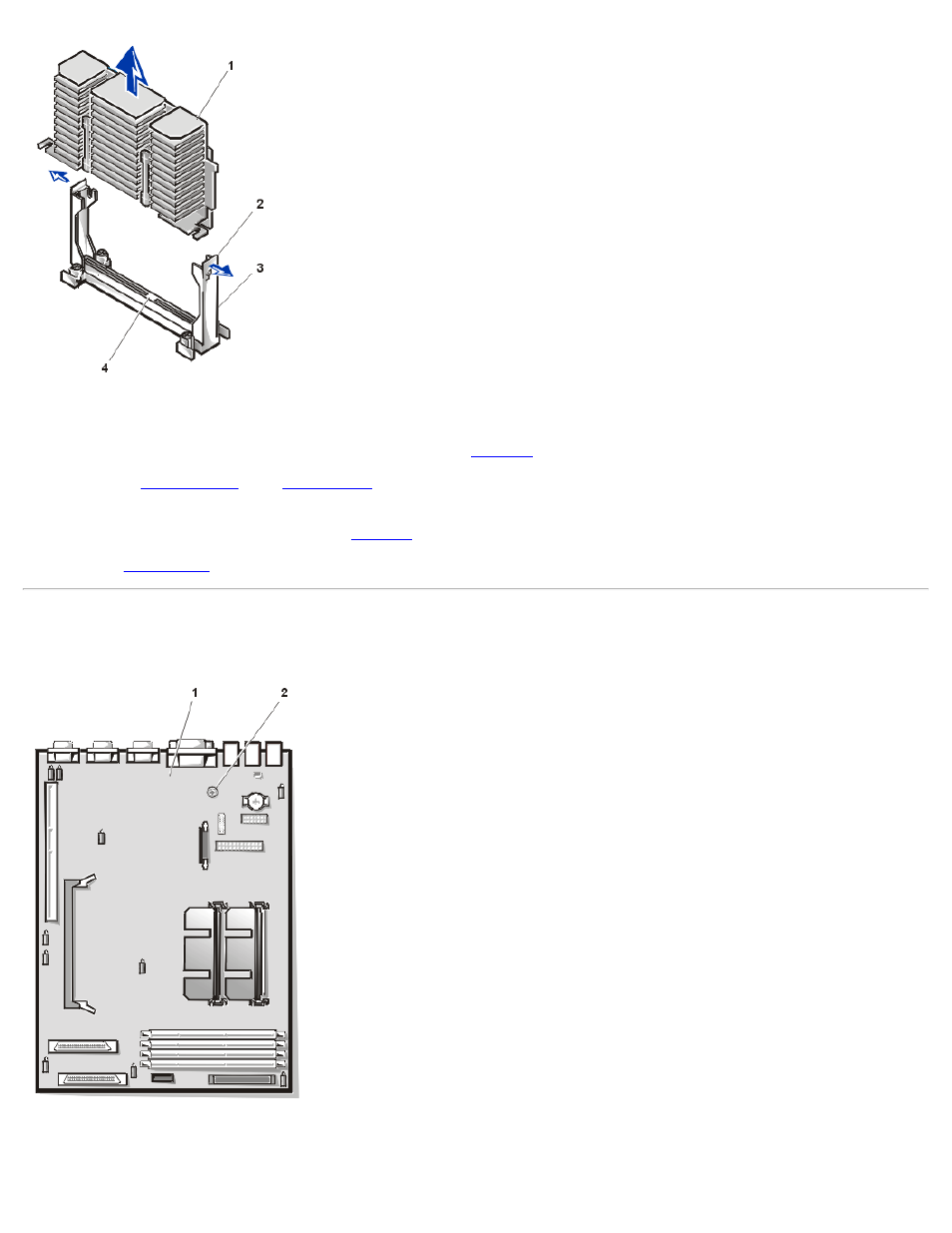

Figure 29. System Board Removal

1 System board

2 Thumbscrew

To remove the system board, perform the following steps.
