Dell ™ Latitude™ E6400 XFR Service Manual
Page 56

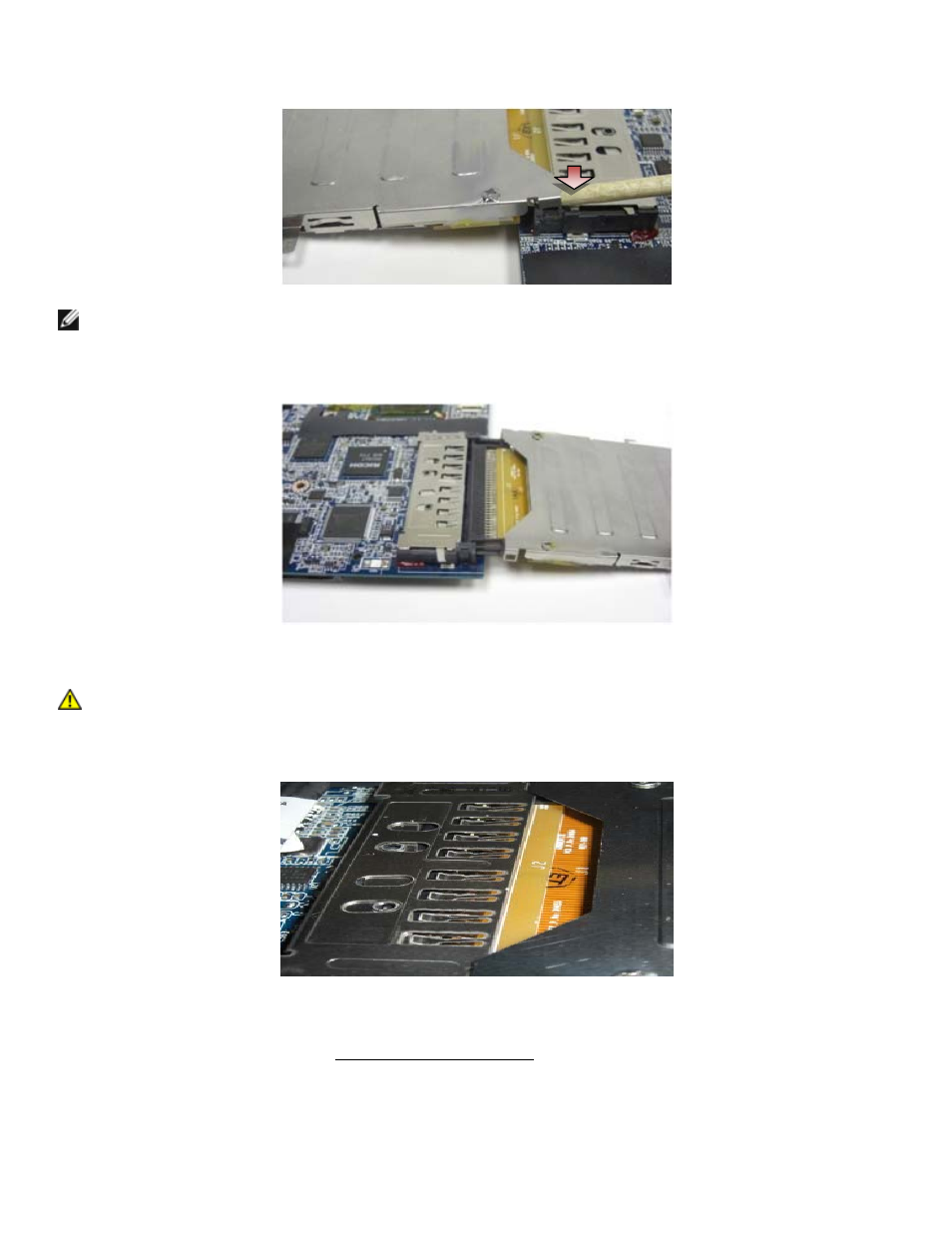

NOTE: Do NOT remove the two screws on the upper back corners of the card cage. They are
used for retaining the card cage to the card extender board.
5. Detach the card extender board from the card socket by lifting the detached clips to clear the card socket and
sliding the card cage from the card socket.
27.2 Replacing the Card Cage
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
1. Insert the card extender into the card connector on the system board.
2. Rotate the retainer clips over the card connector and press the extender card into the socket. The extender is
inserted properly if the white line on the PCB lines up with the metal cage of the system board connector.
3. Seat the retainer clips.
4. Replace the system board (see Replacing the System Board).
28 1394 Card
