Latitude™ E6400 XFR Service Manual

Page 33

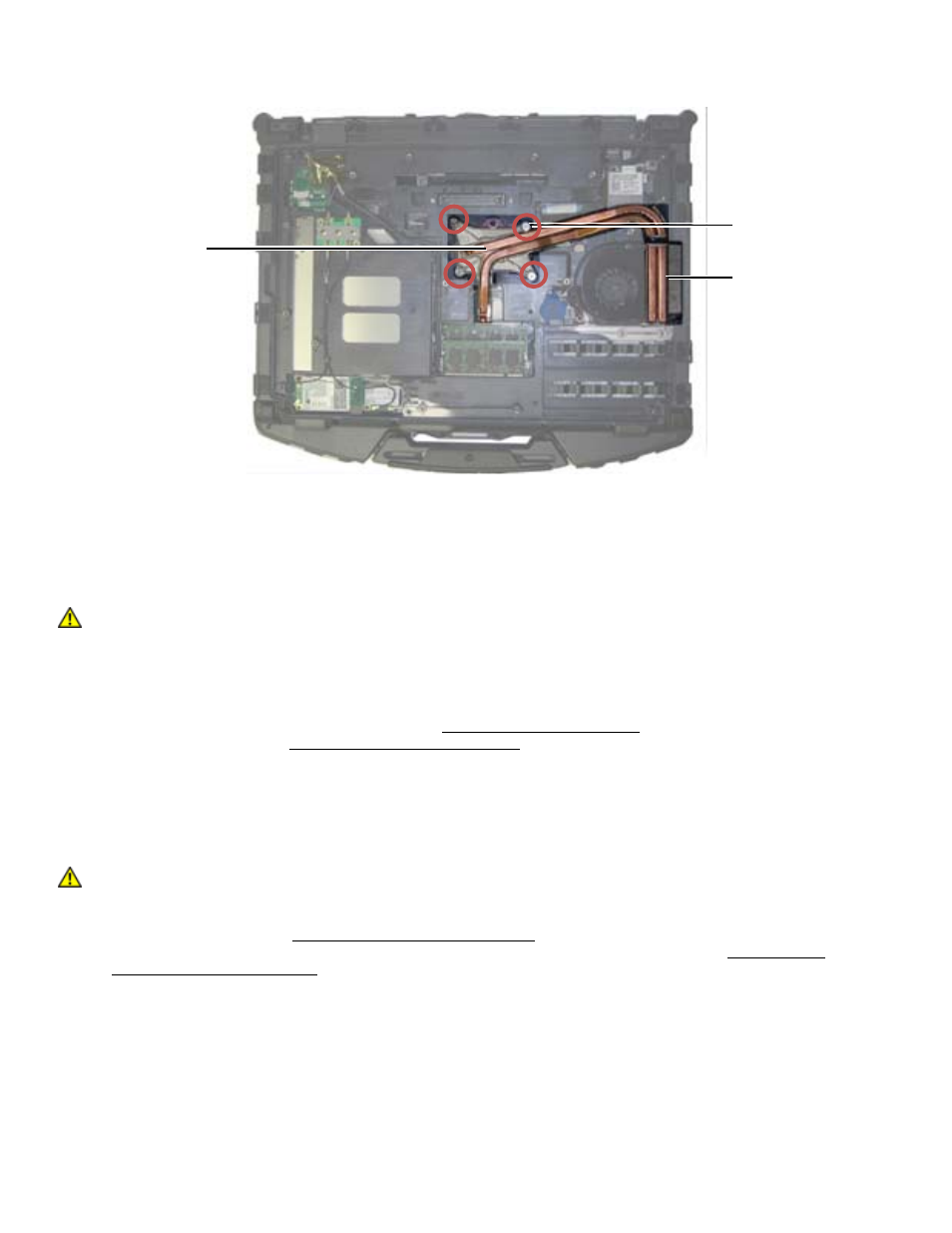

1 Captive screws (4) 2 Radiator
3 Processor

plate

11.2 Replacing the Processor Heatsink Assembly

CAUTION:

Before you begin any of the procedures in this section, follow the safety

instructions that shipped with your computer.

1. Place the radiator into the computer at an angle and set the processor plate in place.
2. Align the four captive screws on the processor plate with the screw holes on the system board.

3. In sequential order, tighten the four captive screws to secure the processor plate to the system board.

4. Replace the fan and bottom access panel (see Replacing the Fan Assembly).
5. Follow the procedures in After Working on Your Computer.

12 Processor Module

12.1 Removing the Processor Module

CAUTION:

Before you begin any of the procedures in this section, follow the safety

instructions that shipped with your computer.

1. Follow the instructions in Before Working on Your Computer.

2. Remove the bottom access panel, fan assembly and processor heatsink assembly (see Removing the

Processor Heatsink Assembly).
