Dell ™ Latitude™ E6400 XFR Service Manual
Page 38
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
1. Connect the coin-cell battery cable to the system board.
2. Insert the coin-cell battery into the computer:
If you are installing the same coin-cell battery you removed, slide the battery under the tab, then press down
to seal the tape on bottom.
If you are installing a new coin-cell battery, first remove the adhesive backing paper from the coin-cell
battery. Slide the battery under the tab, then press down to seal the tape on bottom.

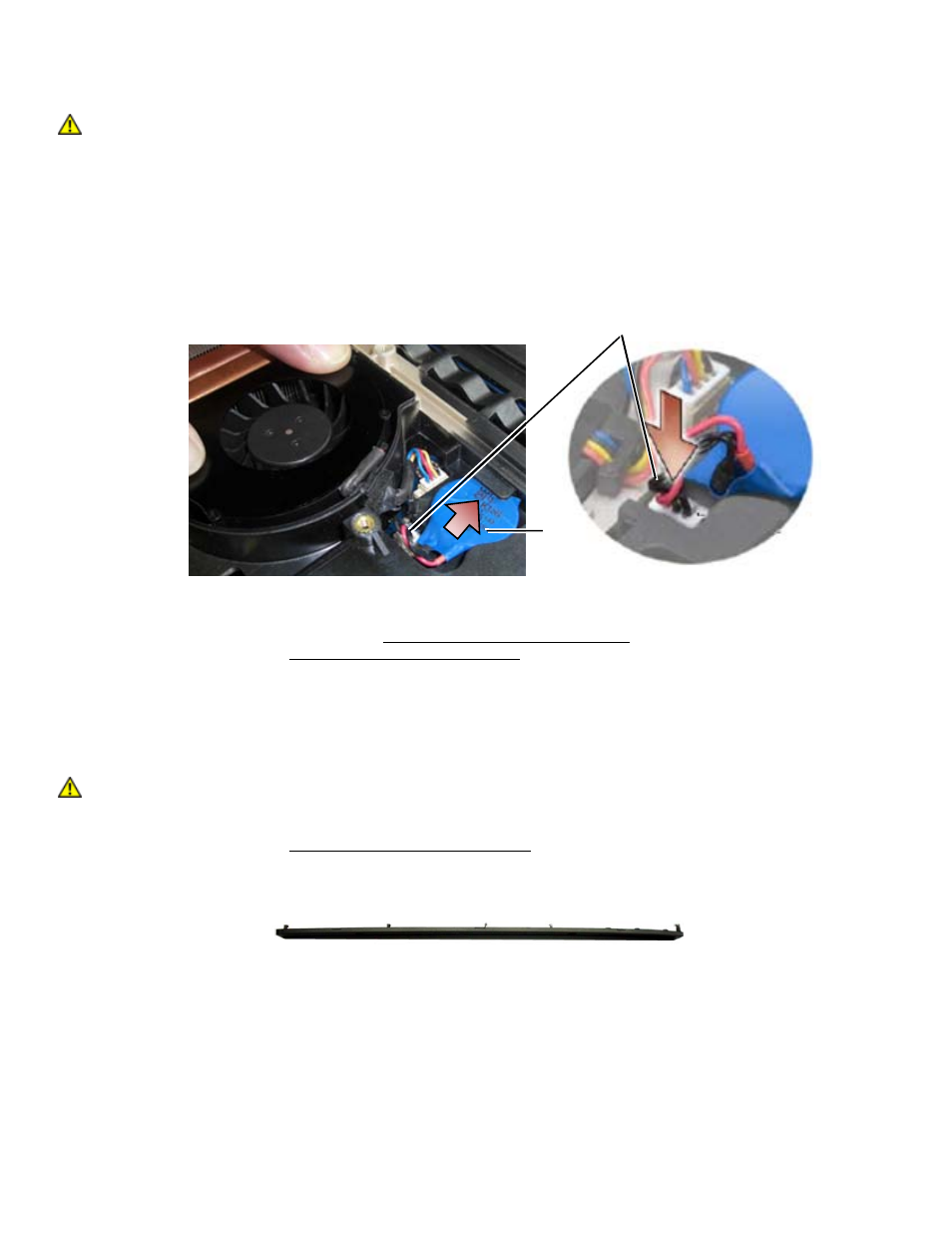

1 Coin-cell battery 2 Coin-cell battery cable
3. Replace the bottom access panel (see Replacing the Bottom Access Panel).
4. Follow the procedures in After Working on Your Computer.
15 LED Cover
15.1 Removing the LED Cover
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
1. Follow the procedures in Before Working on Your Computer.
2. Remove the two M2.5 x 5-mm screws from the top of the LED cover.
3. There are 5 hooks on the bottom of the LED cover.
4. To release hook 1, gently push the LED cover from right to the left.
2
1
1 2 3 4 5
