Dell ™ Latitude™ E6400 XFR Service Manual
Page 21

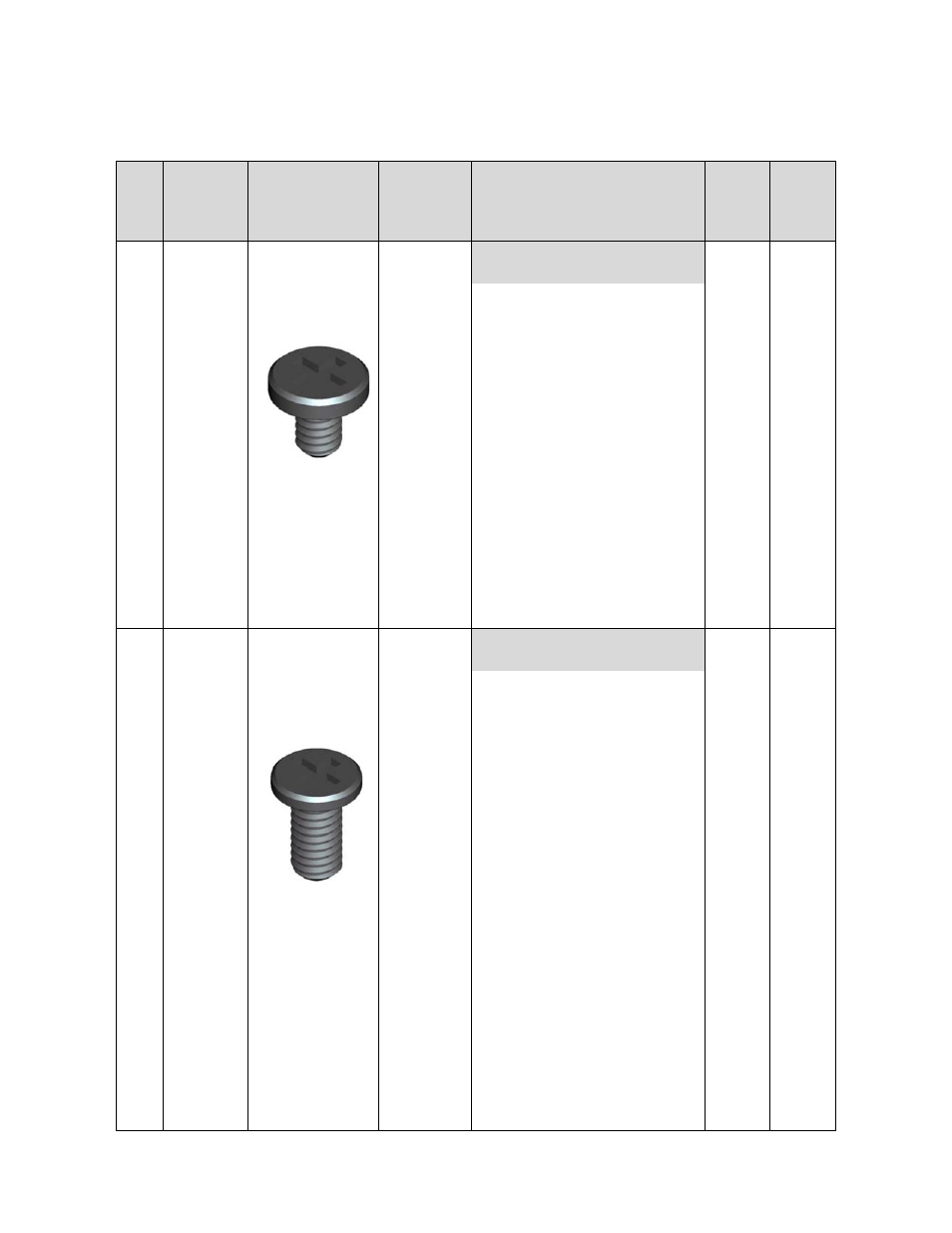

3 Screw Chart
S.
no
Screw
p/n
Screw
Used
Assy
p/n Description
Qty/
Assy
Total
Qty
1
SCR,PHH,PNH,M2X3,STL,
BLK OXD,NYLOK
21010‐01 ASSY,DOOR,BTRY,BLK,CYN 7
21012‐01 ASSY,DOOR,HDD,BLK,CYN 2
21014‐01
ASSY,DOOR,DVD,PCMCIA,BLK,
CYN 2
21001‐01
ASSY,DOORS,CHASSIS,BASE,
BLK,CYN 17
21106‐00 21000‐03
ASSY,CHASSIS,BASE,DSC,PRC,
PCMCIA,BLK,CYN 4 53
21025‐01 ASSY,PALM REST,FPR,BLK,CYN 4
21056 ASSY,PCBA,FPR,2810,CYN 3
21040‐01 ASSY,BZL,BTM,BLK,CYN 8
21902‐03
ASSY,LCD,NON TOUCH,
CMRA+MIC,BLK,CYN 6
2
SCR,PHH,PNH,M2.5X5,STL,BLK
OXD,NYLOK
21900‐10
BASE,DSC,PCMCIA,FPR,BLK,
CYN 4
21000‐03
ASSY,CHASSIS,BASE,DSC,PRC,
PCMCIA,BLK,CYN 13
21001‐01
ASSY,DOORS,CHASSIS,BASE,
BLK,CYN 4
21009‐03
ASSY,DOOR,HNG,LIVING,RJ11,
BLK,CYN 2
21106‐01 21055‐01 ASSY,DOOR,SD,BLK,CYN 2 37
21025‐01 ASSY,PALM REST,FPR,BLK,CYN 2
21044‐01
SUBASSY, HEAT STAKE,
PALM REST, FPR,BLK,CYN 6
21040‐01 ASSY,BZL,BTM,BLK,CYN 2
21009‐01
ASSY,DOOR,HNG,LIVING,
PWR,BLK,CYN
2
