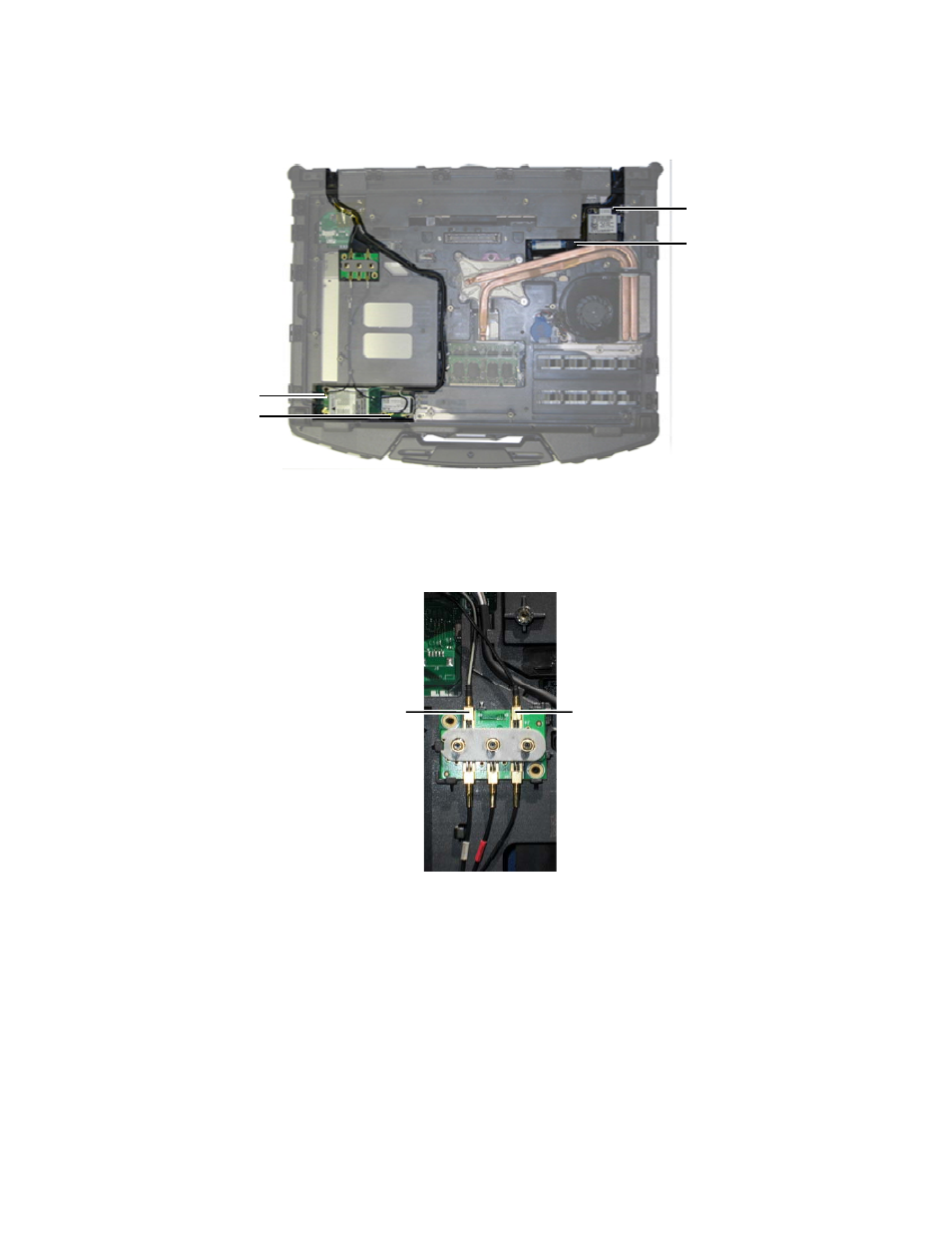

4. Disconnect and unroute the display cable and the wireless cables (WLAN, WWAN, and WPAN). Position all
cables to the rear of the laptop after unrouting.
1 LVDS connector & cable 2 WPAN cable
3 WLAN
cable 4 WWAN cable
5. Disconnect the LVDS cable from the motherboard.
6. Disconnect the antenna cables from the top side connectors (J4 & J5) of the RF Passthru board.
J4 Black – WLAN (from LCD panel antenna)
J5 Black/Grey – WWAN (from LCD panel antenna
7. Remove the display gaskets using your plastic scribe. Use an in-out motion altering sides on an individual
gasket until the gasket is completely removed from the base. Once the gasket is pushed out of the base,
route the rest of the cables thru the chassis bridge to remove LCD cables and antennas from the base.
2
1
3
4
J5 J4
