Dell ™ Latitude™ E6400 XFR Service Manual
Page 28
NOTE: The insertion of the card is considered a blind insert since the connector is not visible.
Please take proper precautions during assembly to verify connection is set before securing the
card.
2. Press the card down and hold it in place.
3. Replace the M2 x 3-mm screw.
4. Connect the blue antenna cable to the WPAN card.
5. Replace the Bottom Access Panel (see Replacing the Bottom Access Panel).
6. Follow the procedures in After Working on Your Computer.
8 FCM
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
The FCM is also known as Intel
®
Turbo Memory and the Intel Flash Cache Logic Chip Mini-card. You can install an FCM
in either the WWAN/FCM card connector or the WPAN/UWB/FCM card connector.
NOTE: This module is only compatible with the Microsoft® Windows Vista® operating system.
8.1 Removing a FCM from the WWAN/FCM Slot
1. Follow the procedures in Before Working on Your Computer.
2. Remove the bottom access panel (see Removing the Bottom Access Panel).
3. Remove the M2 x 3-mm screw. The FCM pops up at a 45-degree angle.
4. Slide the FCM out of the card connector on the system board.

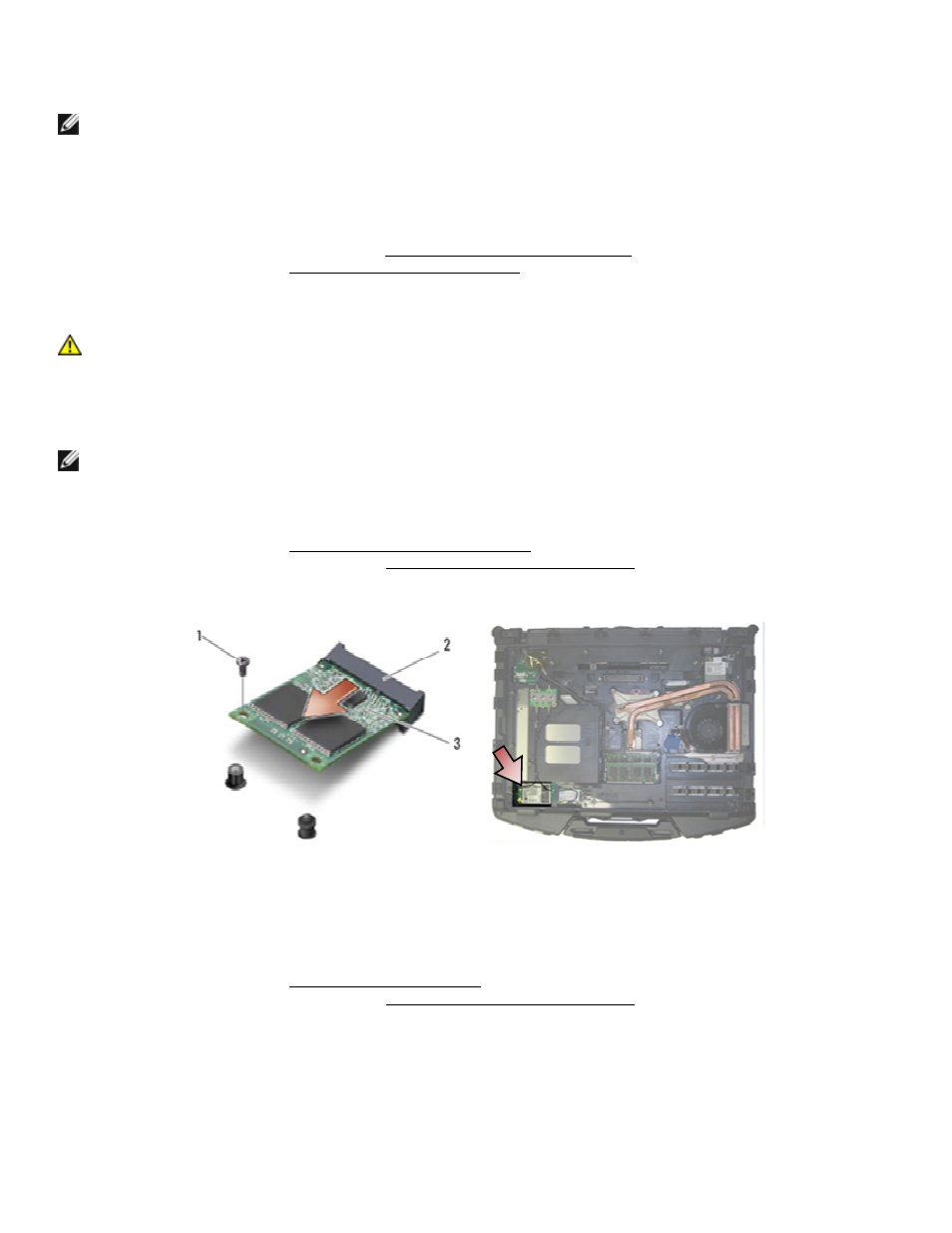

1 M2 x 3-mm screw 2 Card connector
3 FCM
8.2 Removing a FCM from the WPAN/UWB/FCM Slot
1. Follow the procedures in Working on Your Computer.
2. Remove the bottom access panel (see Removing the Bottom Access Panel).
3. Remove the M2 x 3-mm screw. The FCM pops up at a 45-degree angle.
4. Slide the FCM out of the card connector on the system.
