2 replacing a wpan (uwb/bt) card, Eplacing a, Wpan – Dell Latitude E6400 XFR (Mid 2008) User Manual
Page 27: Uwb/bt)
Dell
™
Latitude™ E6400 XFR Service Manual
Page 27

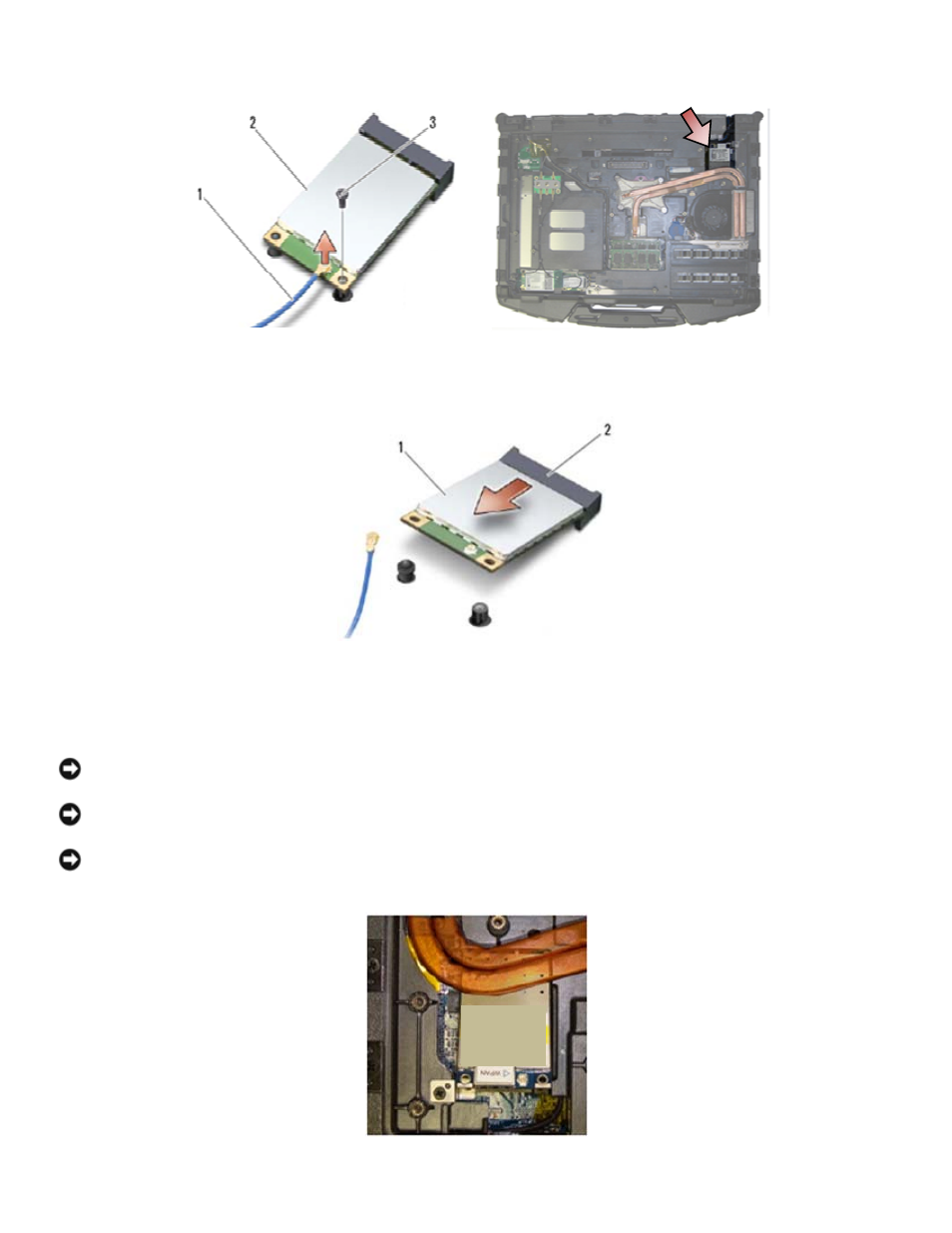

1 Antenna
cable
2 WPAN card
3 M2 x 3-mm screw
5. Slide the card out of the card connector on the system board.
1 WPAN
card 2 Card connector
7.2 Replacing a WPAN (UWB/BT) Card
NOTICE:
The connectors are keyed to ensure correct insertion. If you feel resistance, check the
connectors on the card and on the system board, and realign the card.
NOTICE:
To avoid damage to the WPAN card, ensure the cables are not under the card when
you replace it.
NOTICE:
Insert a WPAN card only into the slot labeled WPAN/UWB/FCM.
1. Slide the card into the connector labeled WPAN/UWB/FCM.
