Dell ™ Latitude™ E6400 XFR Service Manual
Page 24
5.1 Removing the WLAN/WiMax Card
1. Follow the procedures in Before Working on Your Computer.
2. Remove the Bottom Access Panel (see Removing the Bottom Access Panel).
3. Disconnect the antenna cables from the card.
4. Remove the M2 x 3-mm screw. The card will pop up at a 45-degree angle.

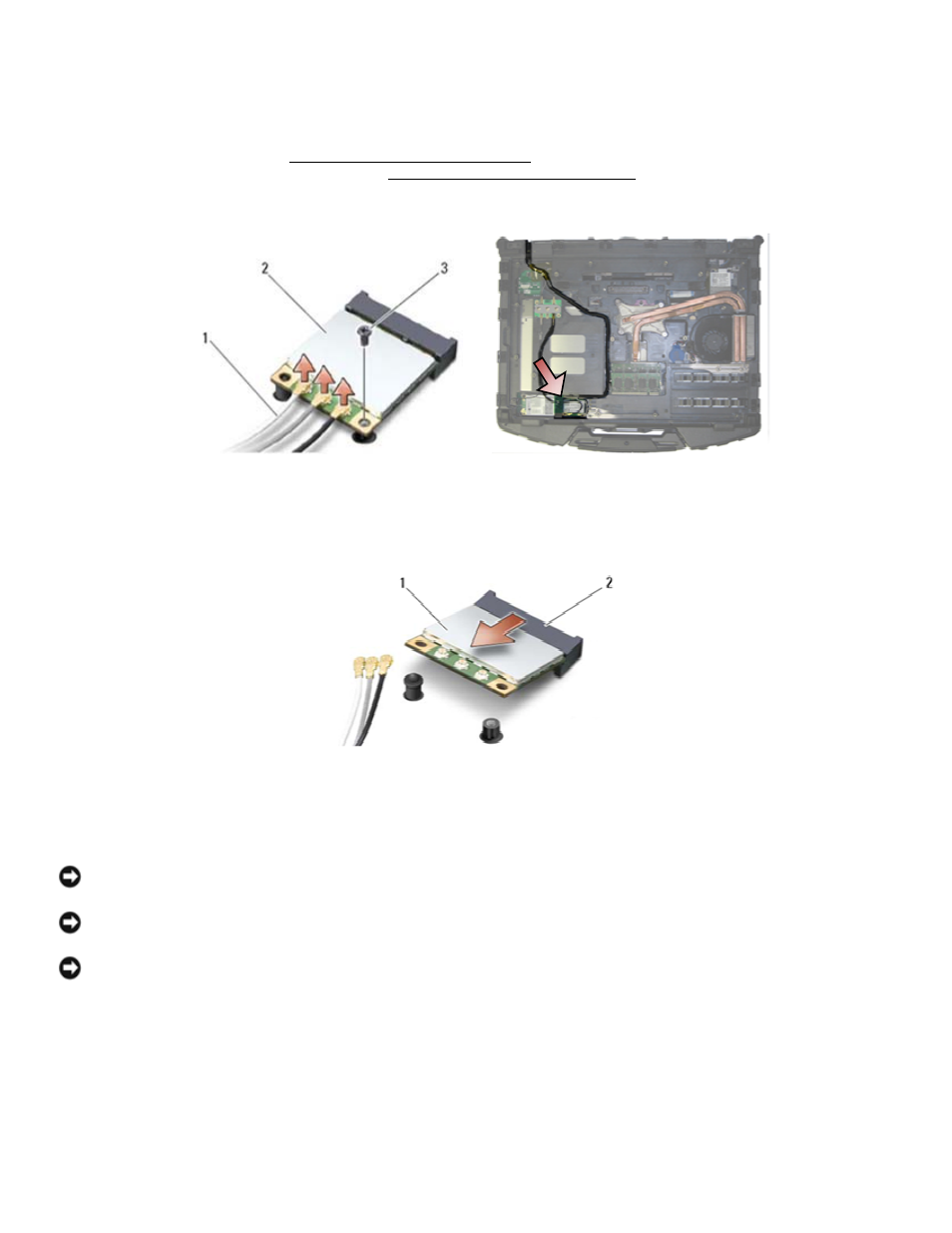

1 Antenna cables (3) 2 WLAN/WiMax card
3 M2 x 3-mm screw
5. Slide the card out of the card connector on the system board.
1 WLAN/WiMax card 2 Card connector
5.2 Replacing the WLAN/WiMax Card
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the
connectors on the card and on the system board, and realign the card.
NOTICE: To avoid damage to the WLAN or WiMax card, ensure the cables are not under the card
when you replace it.
NOTICE: Insert a WLAN or WiMax card only into the slot labeled WLAN/WiMax.
1. Slide the card into the connector labeled WLAN/WiMax.
2. Press the card down and hold it in place.
3. Replace the M2 x 3-mm screw.
4. Connect the appropriate antenna cables to the card you are installing: If the card has two triangles on the
label (white and black), connect the white antenna cable to the connector labeled "main" (white triangle), and
connect the black antenna cable to the connector labeled "aux" (black triangle). Secure the gray antenna
cable in the plastic holder next to the card.
