Installing System Components 91

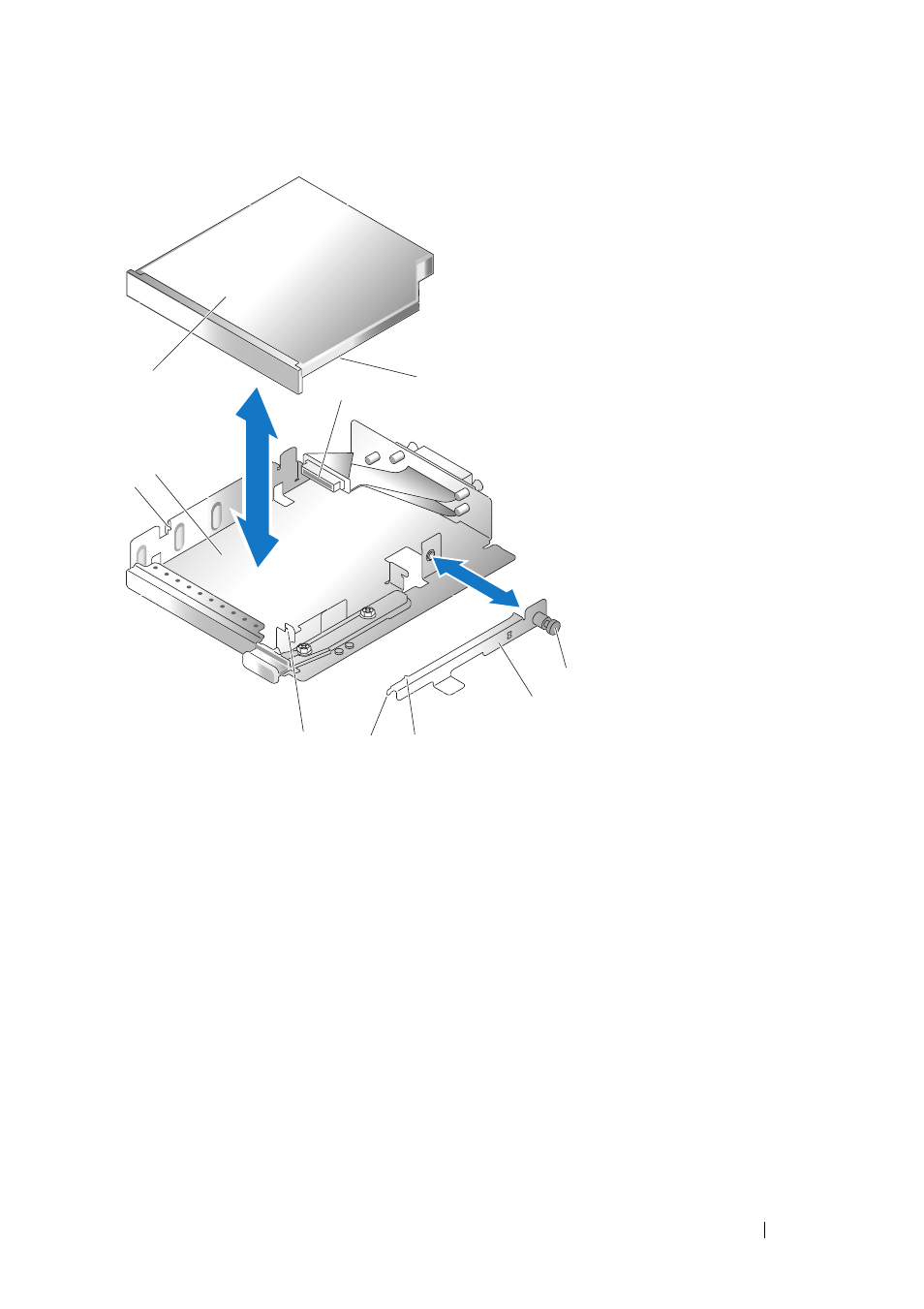

Figure 3-16. Optical Drive and Optical Drive Mounting Tray
3 Unscrew the optical drive retaining screw.
4 Pull the retaining bracket away from the optical drive.
5 Remove the optical drive from the optical drive mounting tray.
1 Optical drive 2 Ribbon cable
3 Hole in optical drive 4 Retaining screw
5 Retaining bracket 6 Alignment pin
7 Retaining bracket tab 8 Mounting tray notch
9 Alignment pin (left side) 10 Mounting tray
10
1
2
5
4
8 7
9
6
3
