106 Installing System Components
3 Remove the cooling shroud. See "Removing the Cooling Shroud" on
page 76.
4 Unpack the new processor.
If any of the pins on the processor appear bent, see "Getting Help" on
page 165.
5 If you are adding an additional processor, remove the processor filler blank
from the socket by pressing inward on the two tabs on the filler blank and
lifting the filler blank out of the system. See Figure 3-21.

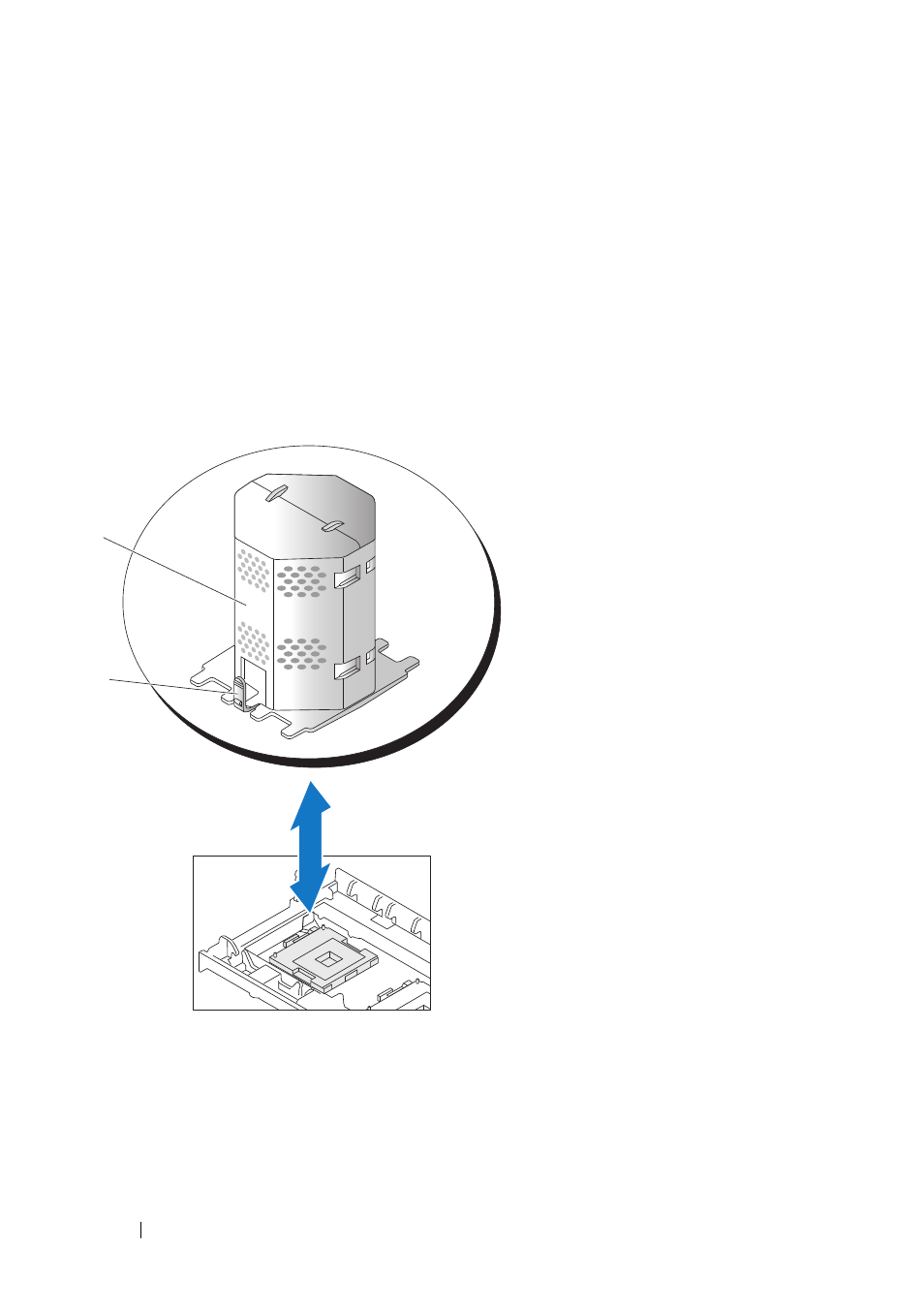

Figure 3-21. Removing a Processor Filler Blank
6 Align the pin-1 corner of the new processor with the pin-1 corner of the
ZIF socket. See Figure 3-20.
1 Processor filler blank 2 Tab
1
2
