System board connectors – Dell PowerEdge R900 User Manual
Page 154

154
Jumpers and Connectors

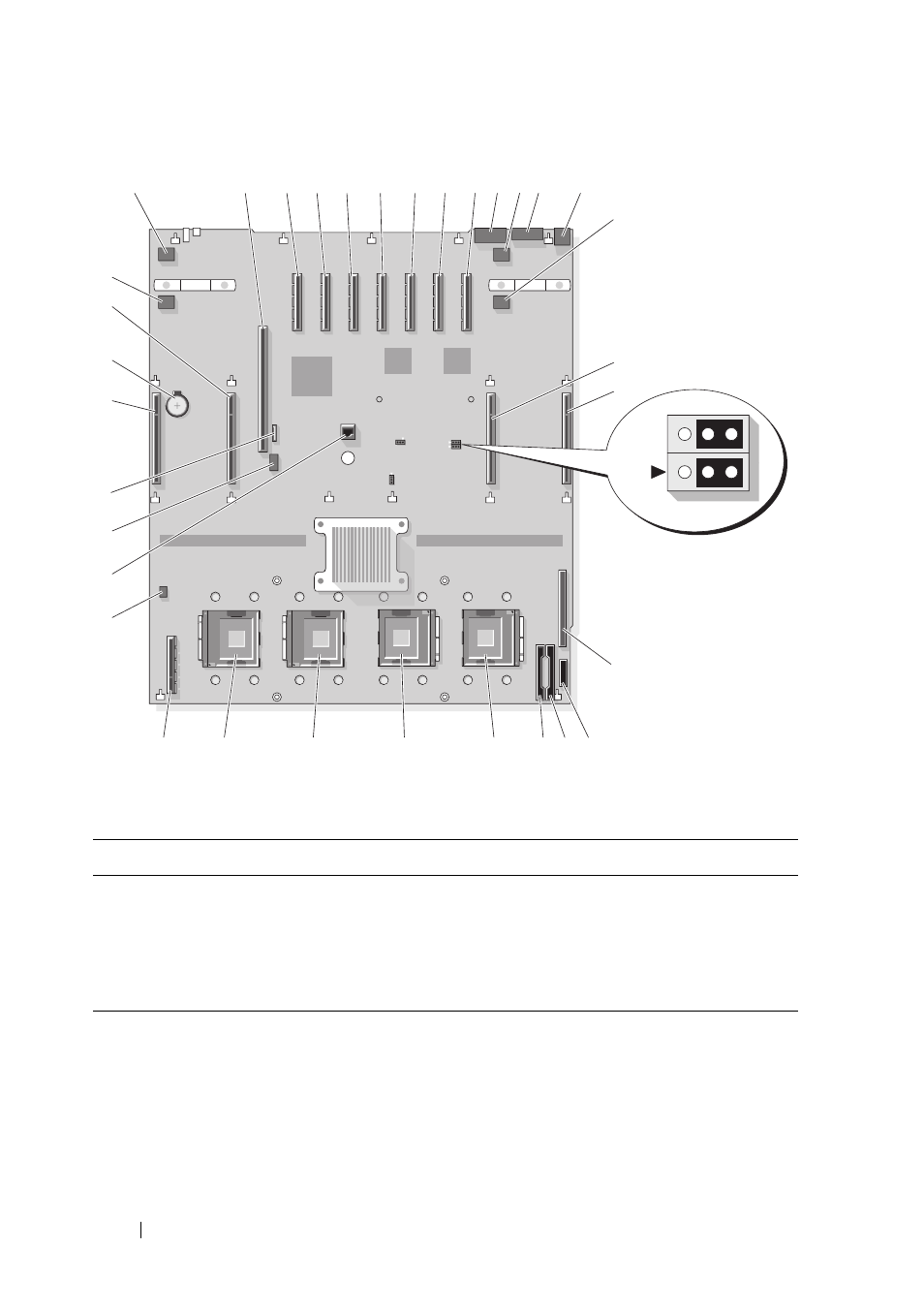

Figure 6-1. System Board Jumpers and Connectors
System Board Connectors
See Figure 6-1 and Table 6-2 for the location and description of system board
connectors.
Table 6-1. System Board Jumpers
Jumper
Location
Setting
Description
Clear NVRAM
J7E2
1 - 3
3 - 5(default)
Clear NVRAM
Normal mode
Password enable
J7E2
2 - 4
4 - 6 (default)
Enable password
Disable password
J7E2
1
33
32
30
31
26
27
28
29
3
2
4
5
6
9
8
7
13
14
15
16
17
12
10
25
24
18
23
22
21
19
20
11
