100 Installing System Components

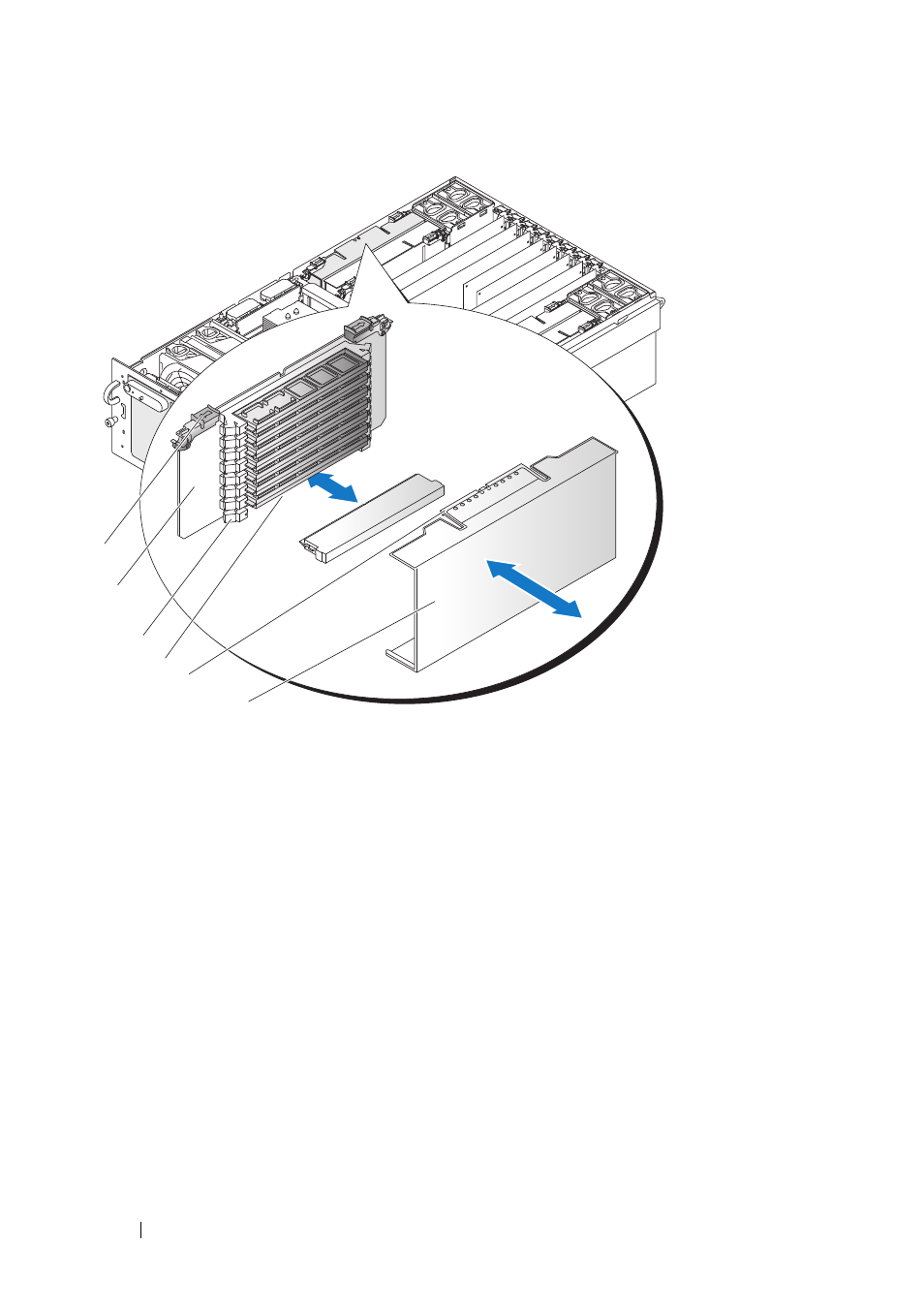

Figure 3-18. Installing Memory Modules
4 Insert the bottom edge of the DIMM into the socket.
5 Push down on the top edge of the DIMM. The levers at each end of the
DIMM socket will close. Make sure the levers close securely.
6 Lower the memory riser DIMM cover over the DIMM slots.
7 Line up the hooks in the memory riser cover with the notches on the
bottom edge of the memory riser.
8 Lift the memory riser cover over the DIMMs and let the cover latch snap
into place.
9 Install the memory riser. See "Installing a Memory Riser" on page 98.
1 Memory riser latch 2 Memory riser
3 DIMM socket lever 4 DIMM socket
5 Memory riser tab 6 Memory riser cover
2
1
3
4
5
6
