Installing System Components 59

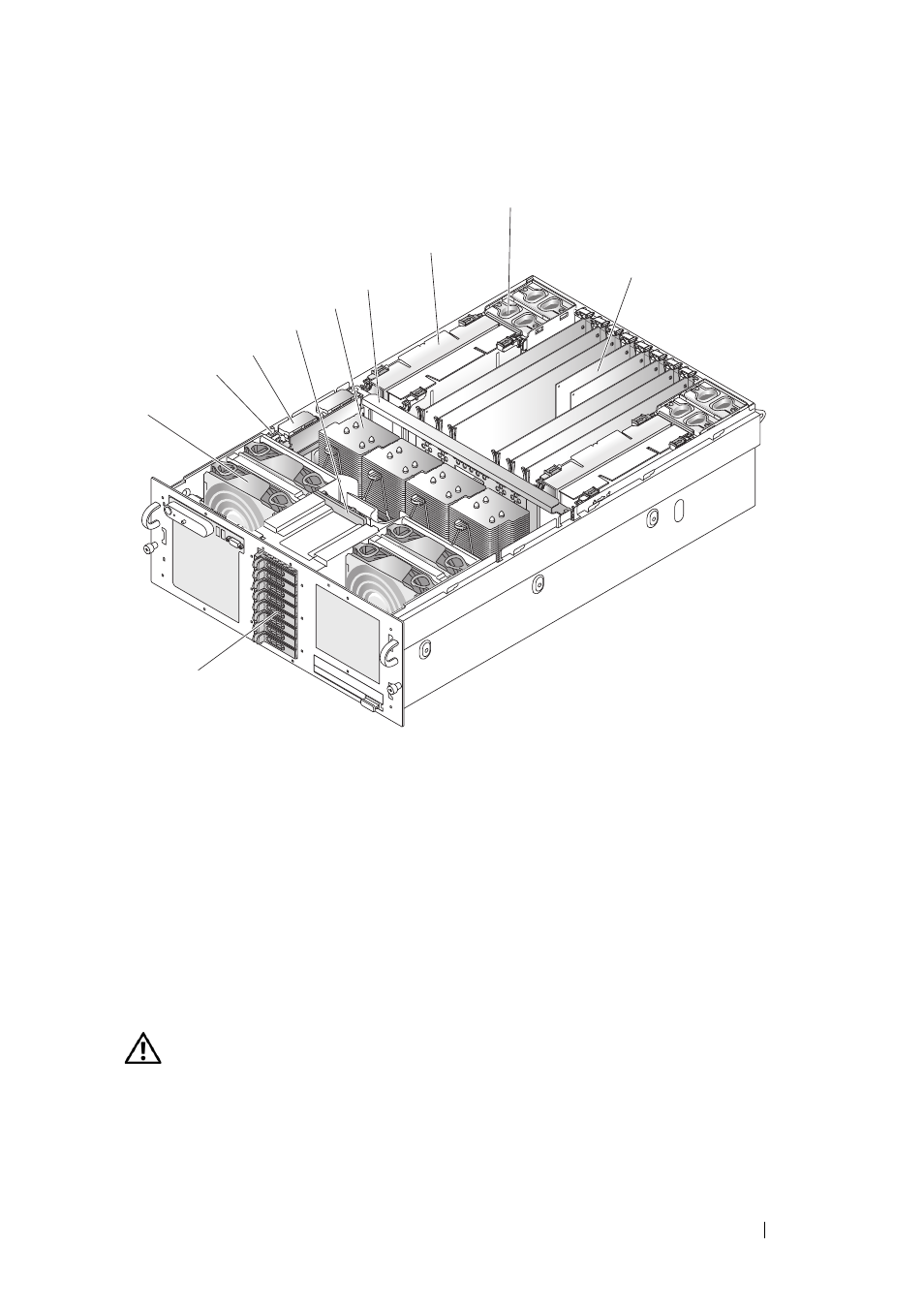

Figure 3-1. Inside the System
Removing and Installing the Top Cover
CAUTION: If the system is rack mounted, make sure the rack is anchored
securely so it will not tilt forward when the server is extended. A crush hazard
exists if the rack tilts forward. This could cause serious injury and/or death.
1 Front fan 2 Intrusion switch
3 RAID controller 4 SAS backplane
5 Processor heat sink 6 Center brace
7 Memory riser 8 Back fan
9 PCI Express card 10 Hard drives
