Compaq Deskpro 1000 Series of Personal Computers A-3

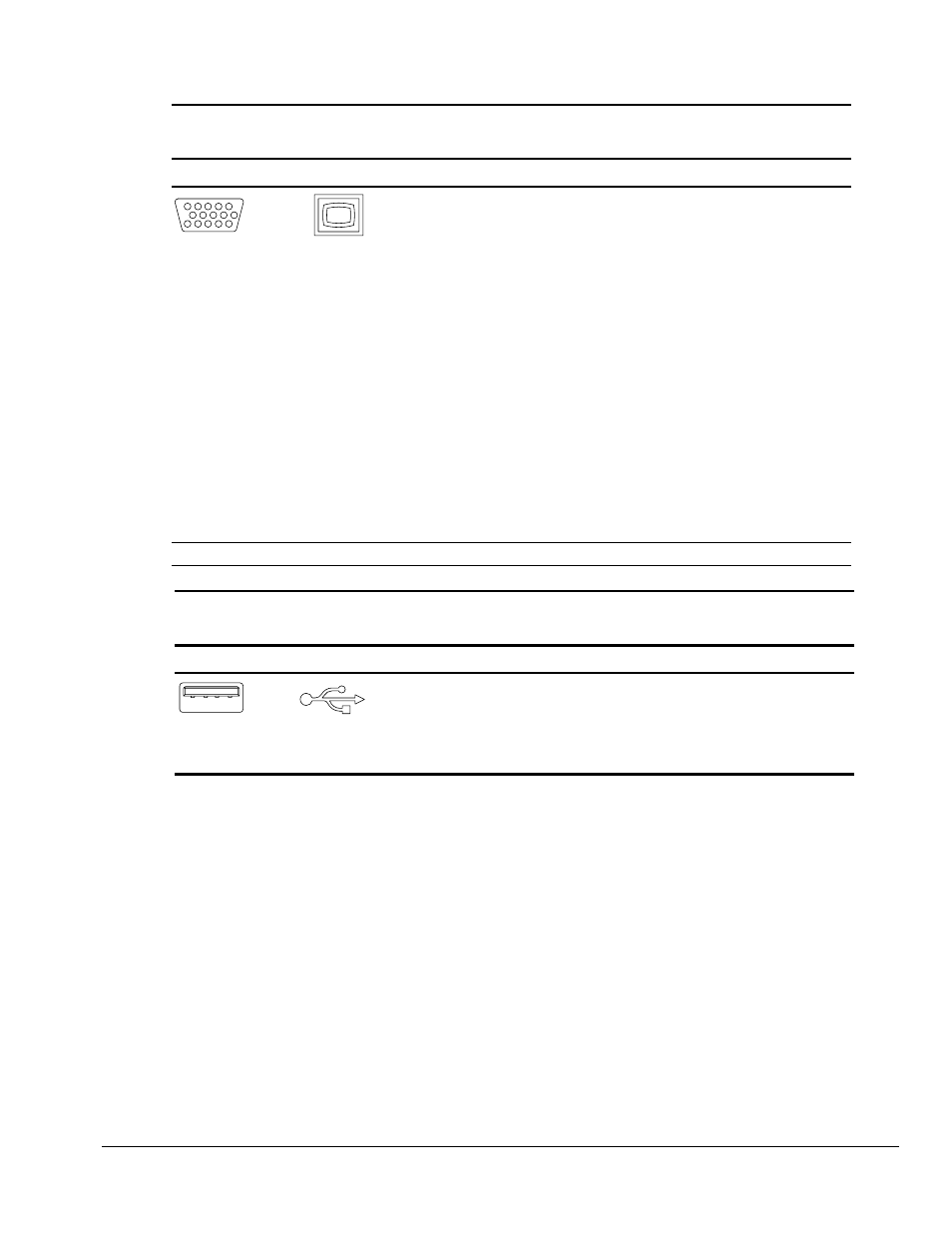

Table A-5
VGA Monitor
Connector Pin Signal
9 10
4 5
15 14 11
7 8
1 2 3
13 12
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Red Analog
Green Analog
Blue Analog
Monitor ID Bit2
Ground
Ground Analog
Ground Analog
Ground Analog
Not Connected
Ground
Monitor ID Bit 0
Bidirectional Data (SDA) *
Horizontal Sync
Vertical Sync
Data Clock (SCL)*
*For DDC support (I2C monitors)
Table A-6
USB Connector
Connector Pin Signal
1 2 3 4
1
2
3
4
VCC
- Data
+ Data
Ground
