5.19.2
Drive Cage
1. Perform preparation procedures (Section 5.4).
2. Remove the system unit cover (Section 5.5).
3. Disconnect the cables attached to the 3.5-inch hard drive and diskette drive in the drive cage.
4. Remove two screws from the top of the drive cage.
5. Slide the drive cage to the rear about one inch allowing the front of the cage to clear the bezel,
then lift the cage out of the chassis.

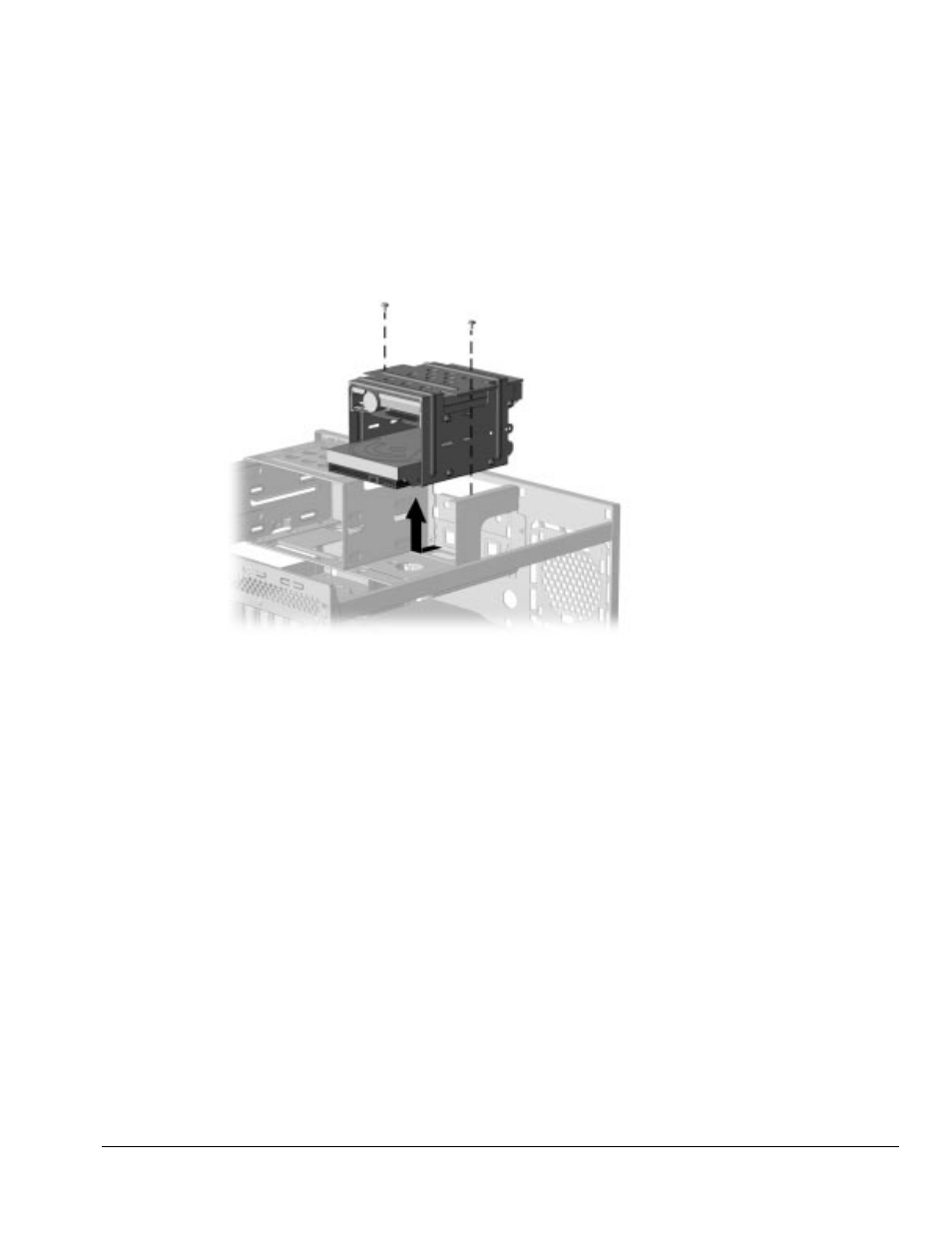

Figure 5-21. Removing the Drive Cage
To replace the drive cage, reverse the previous procedure.
