5-24 Removal and Replacement Procedures
5.19 Mass Storage Devices
This section discusses the removal and replacement procedures on the Compaq Deskpro 1000
Series of Personal Computers.
For information on installing an additional hard drive using cable-select technology, refer to
Appendix C, “Hard Drives.”
5.19.1 Drive Positions
The Compaq Deskpro 1000 Series of Personal Computers supports up to five drives, including:
1
One external 3.5-inch third-height diskette drive
2
One internal 3.5-inch third-height bay for an optional hard drive
3
One internal 3.5-inch third-height hard drive
4
One external 5.25-inch half-height bay for optional drive
5
One external 5.25-inch half-height bay for optional drive

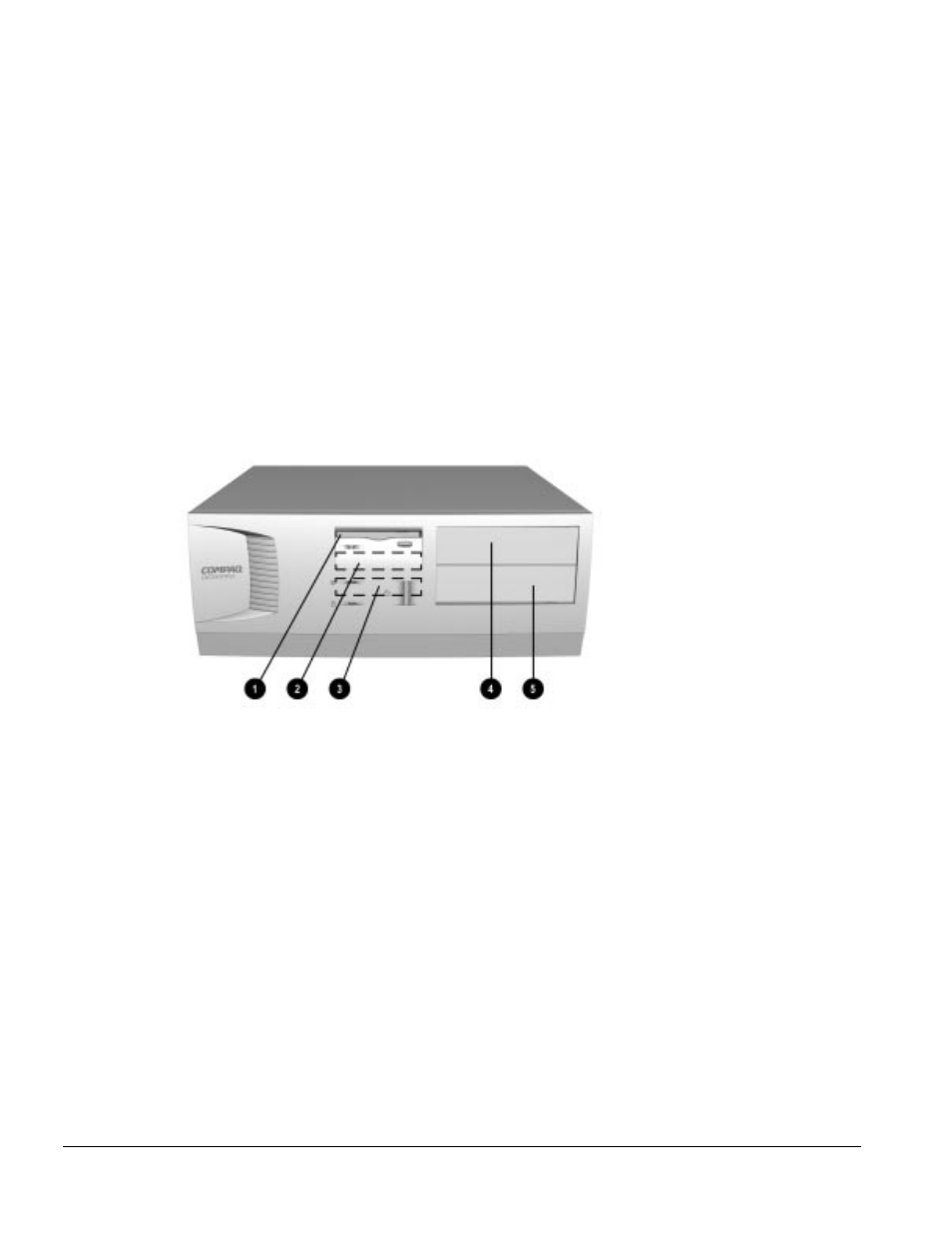

Figure 5-20. Drive Bay Positions
