6-2 Jumper Information

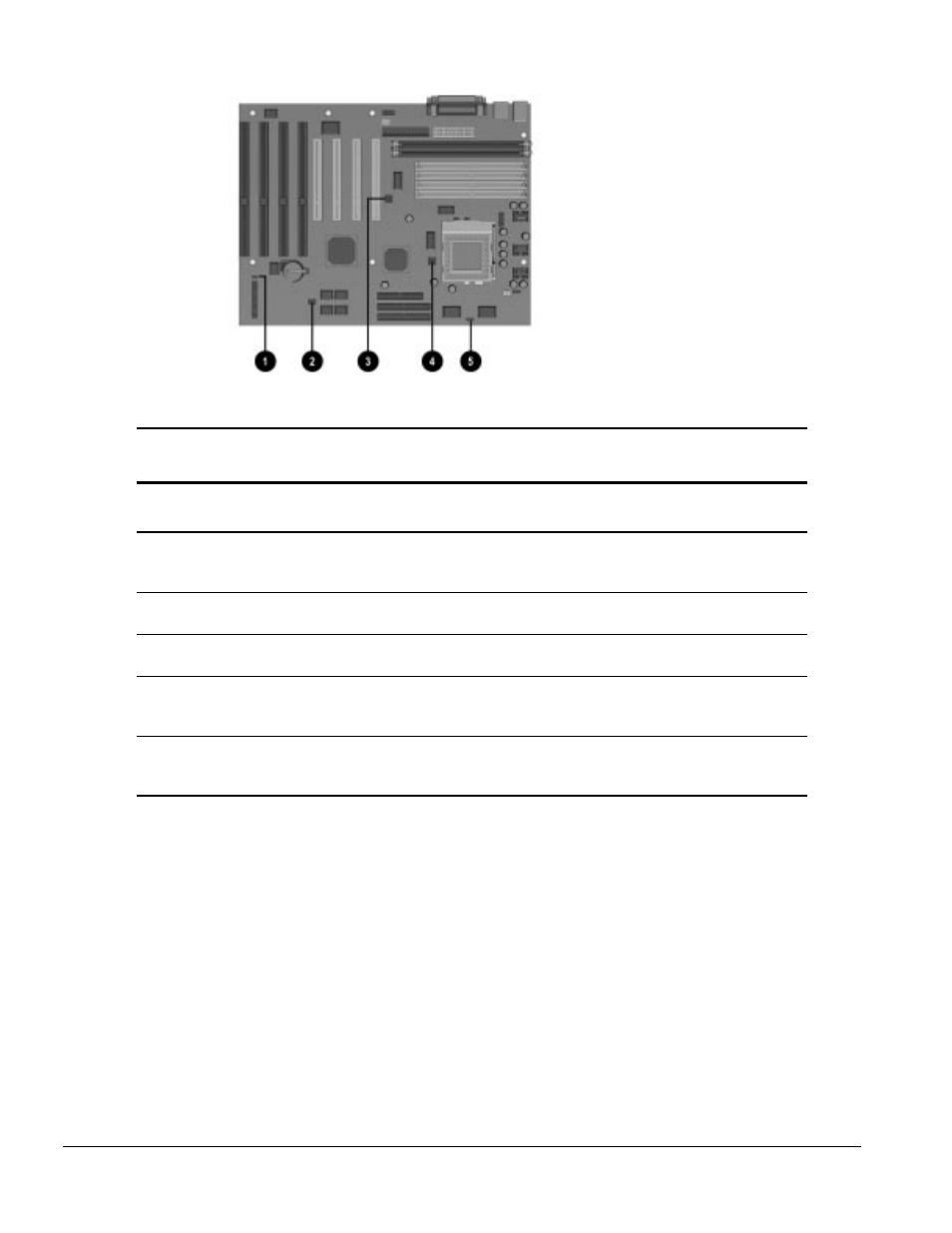

Figure 6-1. Locating the Jumpers
Table 6-1
System Board Jumpers
System
Board ID
Function Description
1
CPW Clear Password Allows you to set the password configuration to
enabled or disabled. You may need to enable this
jumper if you forget your password.
2
EP1, EP2 Flash EPROM Type
Selection Allows you to configure the Flash EPROM chip.
3
CLK1, CLK2,
CLK3 CPU External Clock
(BUS) Frequency Allows you to set the different CPU speed
configurations
4
FREQ1,
FREQ2, FREQ3 CPU to Bus
Frequency Ratio Used in conjunction with CLK1, CLK2, and CLK3 to
decide the ratio of the internal frequency of the CPU
to the bus clock.
5
SRAM CPU to SRAM Data
Transacting Mode
Selection Allows you to select the CPU to SRAM data
read/write mode.
