Compaq Deskpro 1000 Series of Personal Computers
1-7
1.5.3
Rear Panel Connectors

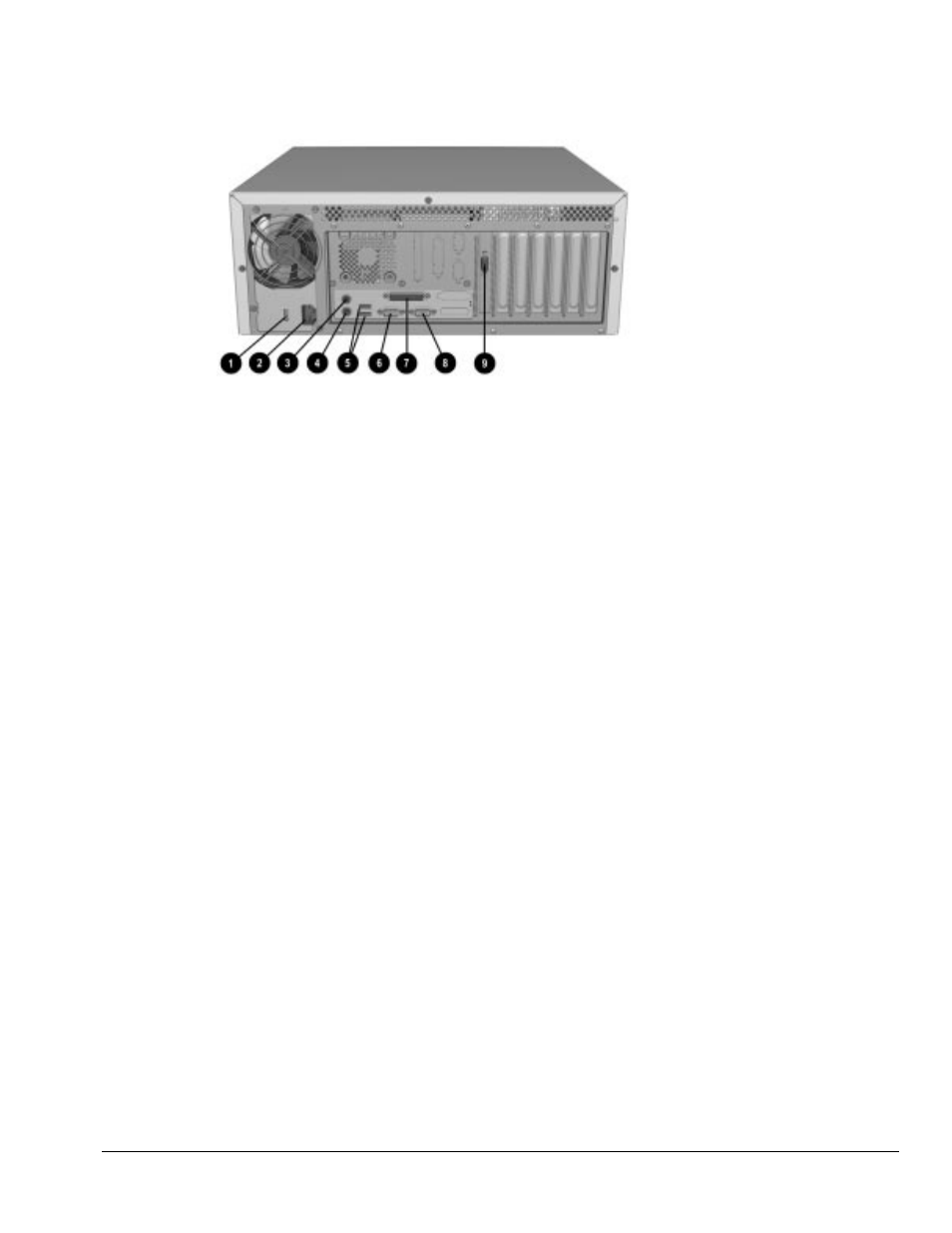

Figure 1-4. Rear Panel Connectors
1
Voltage Select Switch (115 V U.S. or 230 V to match geographical requirements)
2
Power Cord Connection
3
Mouse Connector
4
Keyboard Connector
5
Universal Serial Bus (USB) Connectors
6
Serial Connector
7
Parallel Port Connector
8
Serial Connector
9
Monitor Connector
