5.10 Memory Modules
You can expand computer memory by installing industry-standard single inline memory modules
(SIMMs) or dual inline memory modules (DIMMs) on the system board.
The system board includes:
„ Four SIMM sockets that can be populated with Extended Data Output (EDO) or Fast Page
Mode (FPM) modules installed in equally matched pairs; for example, two 8-MB modules,
two 16-MB modules, or two 32-MB modules.
„ Two DIMM sockets that can be populated with EDO or SDRAM modules either singly or
in pairs.

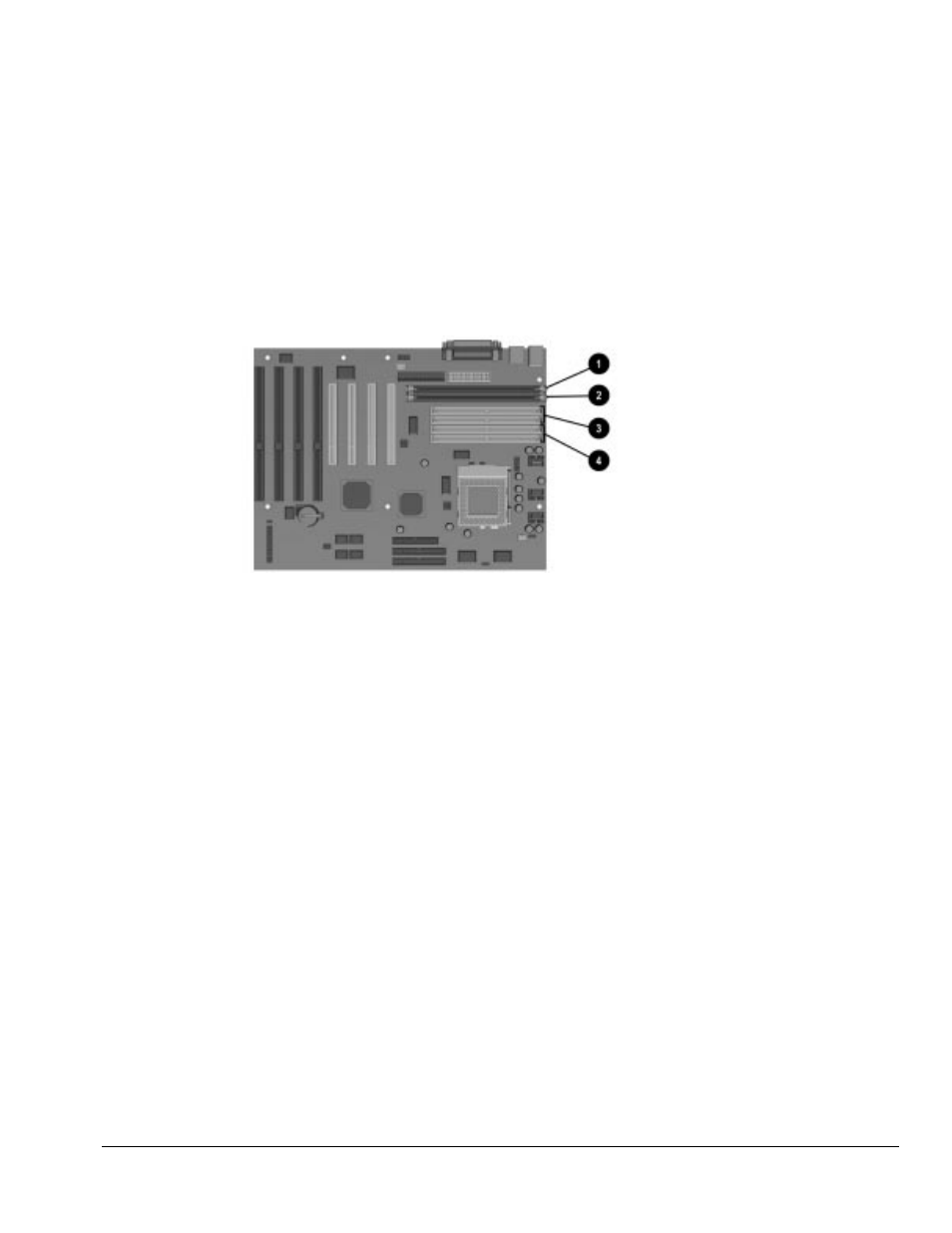

Figure 5-9. Memory Module Sockets on the System Board
1 DIMM 1 (Bank 0)
2
DIMM 2 (Bank 1)
3
SIMM 1 & 2 (Bank 0)
4 SIMM 3 & 4 (Bank 1)
✎
The system board can use either SIMM or DIMM memory, but not both at the
same time, and can be populated as shown in the Table 5-2.
