Compaq Deskpro 1000 Series of Personal Computers A-1
appendix A
C
ONNECTOR
P
IN
A
SSIGNMENTS

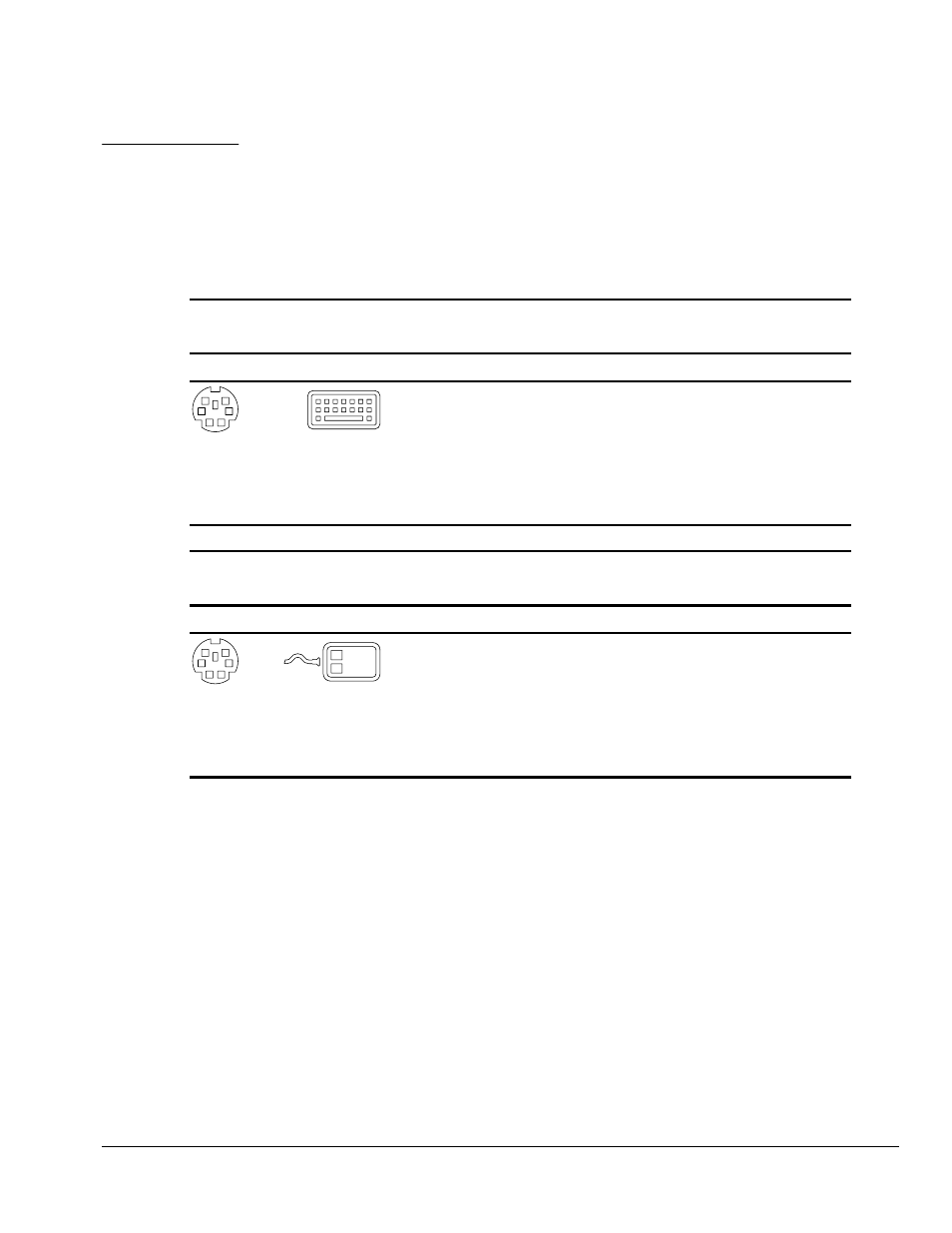

This appendix contains the pin assignments for all external connectors:
Table A-1
Keyboard
Connector Pin Signal
KEY
6 5
4 3
2 1
1
2
3
4
5
6
Data
Unused
Ground
+5 VDC
Clock
Unused
Table A-2
Mouse
Connector Pin Signal
1 2
6
4 KEY
5
3
1
2
3
4
5
6
Data
Unused
Ground
+5 VDC
Clock
Unused
