15
ITEM SIZE SIZE SIZE SIZE
NO. DESCRIPTION QTY. 4" (100mm) 6" (150mm) 8" (200mm) 10" (250mm)
1 1st Knuckle Joint Assembly 1 7011414 7011415 7015553 7015553
2 2nd Knuckle Joint Assembly 1 7011441 7011426 7011236 7011236
3 Bonnet Flange and Cover 1 7011430 7011442 7011453 7011453
4 Bonnet Gasket 1 7011199 7011124 7011125 7011125
5 Ball Valve 4 7014668 A000449 A000449 A000449
6 Braided Hose 1 7014645 7014645 7014645 7014645
7 1st Assembly Springs 7011320 7011319 7011319 7011319
(# of springs required) 2 2 5 5
8 2nd Assembly Springs 7011322 7011128 7011323 7011323
(# of springs required) 2 2 3 3
9 3 /
8
" Stainless Steel Housing Bolts 2 7014619 7014619 7014619 7014619
10 Washer (rubber faced) 2 7014585 7014585 7014585 7014585
11 Vulcanized Clapper Plate 1 7011418 7011419 7011420 7011420
12 Bronze Seat Ring 1 7011160 7011162 7011163 7011163
13 Seat O-ring (not shown) 1 7011161 A300704 A300706 A300706
14 Relief Valve 1 7011283 7011283 7011283 7011283
15 Clapper Retainer Clip (not shown) 1 7013911 7013912 7013913 7013913
16 Tong Tool (all sizes) 1 7016090 7016090 7016090 7016090
17 Seat Install and Removal Tool 1 7013941 7013946 7013950 7013950
18 Linkage Retainer Clip 1 7011037 7011037 7011037 7011037

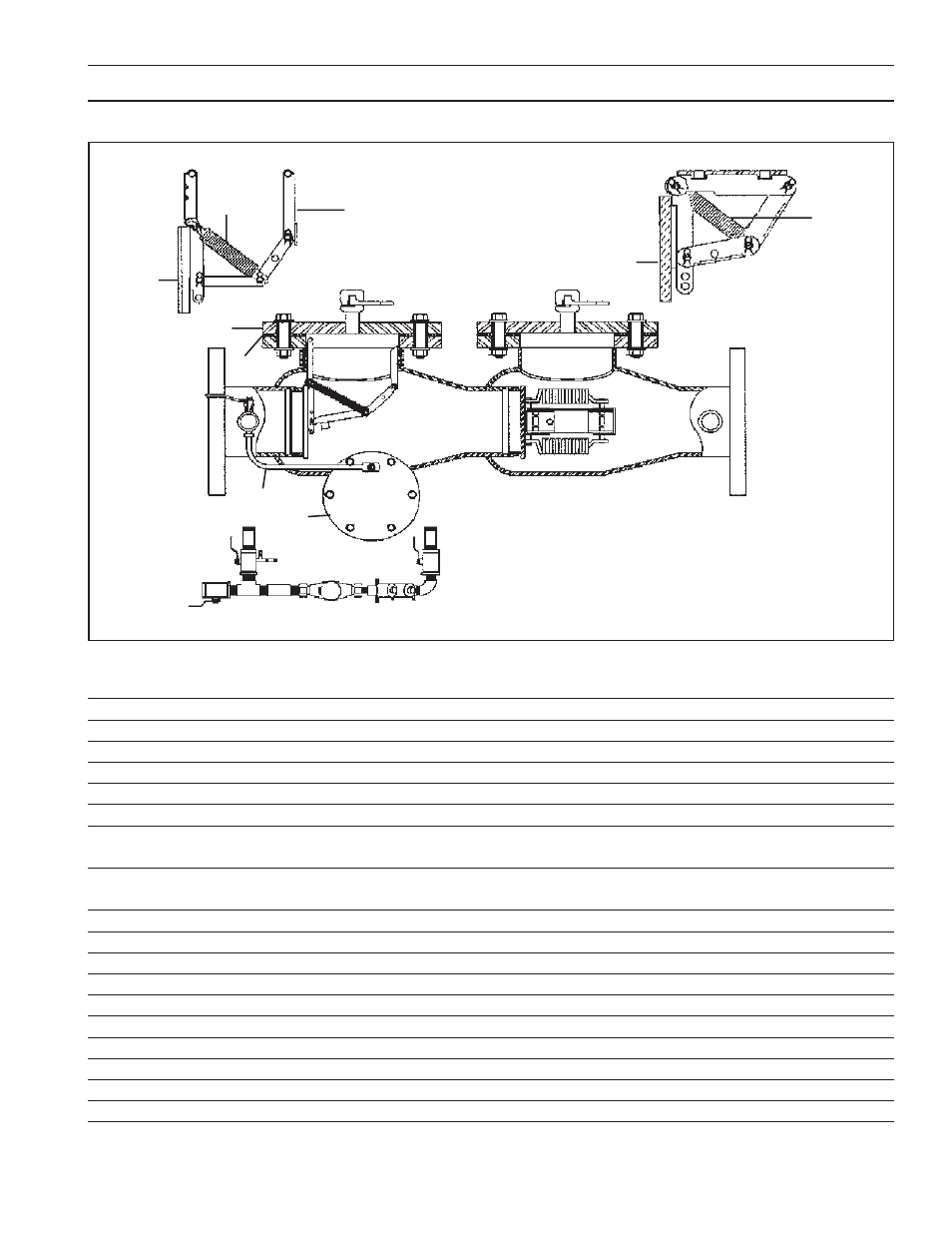

PARTS
SERIES 5000RPDA EPOXY
1
2
8
11
14
6
4
3
7
18
11
All 1st Checks
and 8" and 10" 2nd Checks
(200-250mm)
